| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2208SMDI-XXG-XXXX (PLHD2-xxSMD) series |
plugs pin open straight double row with double insulator on Board for surface (SMD) mounting, pitch 2,0x2,0 mm
|

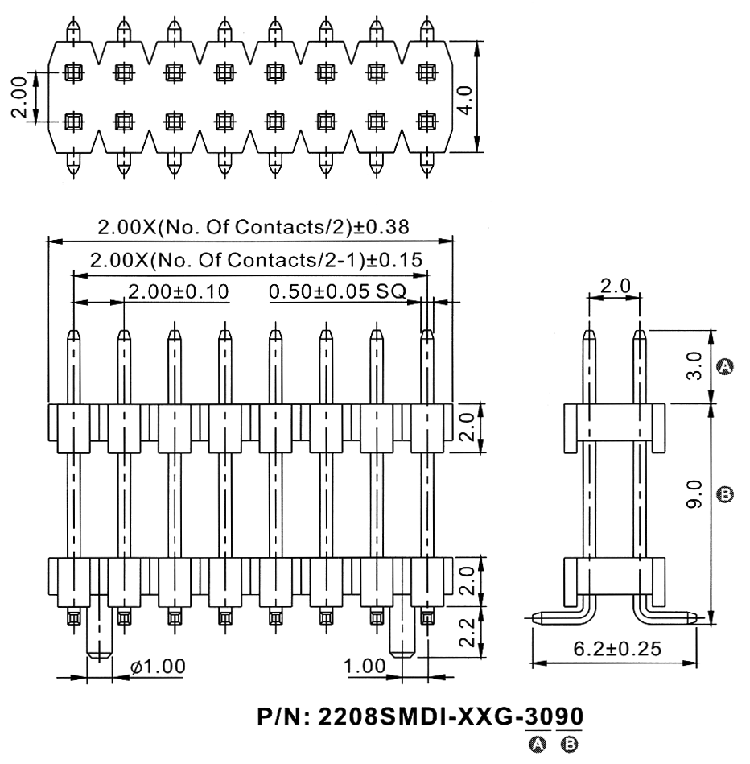

Drawing
|
| 2208 |
SMDI |
- |
04 |
G |
- |
3090 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2208
2) Insulator:
SMDI: for surface mounting (SMD), double insulator
3) number of pins (4...80):
04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
06: 6 pins
xx: ...
80: 80 pins
4) Contact coverage:
G: gold plating
T: tin plating
5) Dimensions A & B in tenths of mm (standard: A=30 mm; B=90 mm):
XXXX
|
|
Plugs pin open straight double row with double insulator on Board for surface (SMD) mounting of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 24898 |
2208SMDI-04G-3090 (PLHD2-04SMD) |
4 |
| 24899 |
2208SMDI-06G-3090 (PLHD2-06SMD) |
6 |
| 24900 |
2208SMDI-08G-3090 (PLHD2-08SMD) |
8 |
| 24901 |
2208SMDI-10G-3090 (PLHD2-10SMD) |
10 |
| 24902 |
2208SMDI-12G-3090 (PLHD2-12SMD) |
12 |
| 24904 |
2208SMDI-14G-3090 (PLHD2-14SMD) |
14 |
| 24905 |
2208SMDI-16G-3090 (PLHD2-16SMD) |
16 |
| 24716 |
2208SMDI-18G-3090 (PLHD2-18SMD) |
18 |
| 24907 |
2208SMDI-20G-3090 (PLHD2-20SMD) |
20 |
| 24715 |
2208SMDI-22G-3090 (PLHD2-22SMD) |
22 |
| 24906 |
2208SMDI-24G-3090 (PLHD2-24SMD) |
24 |
| 24910 |
2208SMDI-26G-3090 (PLHD2-26SMD) |
26 |
| 24908 |
2208SMDI-28G-3090 (PLHD2-28SMD) |
28 |
| 24909 |
2208SMDI-30G-3090 (PLHD2-30SMD) |
30 |
| 24903 |
2208SMDI-32G-3090 (PLHD2-32SMD) |
32 |
| 24911 |
2208SMDI-34G-3090 (PLHD2-34SMD) |
34 |
| 11599 |
2208SMDI-36G-3090 (PLHD2-36SMD) |
36 |
| 11600 |
2208SMDI-38G-3090 (PLHD2-38SMD) |
38 |
| 24912 |
2208SMDI-40G-3090 (PLHD2-40SMD) |
40 |
| 24913 |
2208SMDI-42G-3090 (PLHD2-42SMD) |
42 |
|
|
| 24914 |
2208SMDI-44G-3090 (PLHD2-44SMD) |
44 |
| 24915 |
2208SMDI-46G-3090 (PLHD2-46SMD) |
46 |
| 24916 |
2208SMDI-48G-3090 (PLHD2-48SMD) |
48 |
| 24917 |
2208SMDI-50G-3090 (PLHD2-50SMD) |
50 |
| 24919 |
2208SMDI-52G-3090 (PLHD2-52SMD) |
52 |
| 24918 |
2208SMDI-54G-3090 (PLHD2-54SMD) |
54 |
| 24920 |
2208SMDI-56G-3090 (PLHD2-56SMD) |
56 |
| 24921 |
2208SMDI-58G-3090 (PLHD2-58SMD) |
58 |
| 24922 |
2208SMDI-60G-3090 (PLHD2-60SMD) |
60 |
| 24923 |
2208SMDI-62G-3090 (PLHD2-62SMD) |
62 |
| 24924 |
2208SMDI-64G-3090 (PLHD2-64SMD) |
64 |
| 24925 |
2208SMDI-66G-3090 (PLHD2-66SMD) |
66 |
| 24928 |
2208SMDI-68G-3090 (PLHD2-68SMD) |
68 |
| 24926 |
2208SMDI-70G-3090 (PLHD2-70SMD) |
70 |
| 24927 |
2208SMDI-72G-3090 (PLHD2-72SMD) |
72 |
| 24929 |
2208SMDI-74G-3090 (PLHD2-74SMD) |
74 |
| 24930 |
2208SMDI-76G-3090 (PLHD2-76SMD) |
76 |
| 24931 |
2208SMDI-78G-3090 (PLHD2-78SMD) |
78 |
| 24932 |
2208SMDI-80G-3090 (PLHD2-80SMD) |
80 |
|
PCB layout
|
|
|
