| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2207BR-XXG series |
straight two-row sockets with side entrance to the Board for mounting in holes, pitch 2,0x2,0 mm
|

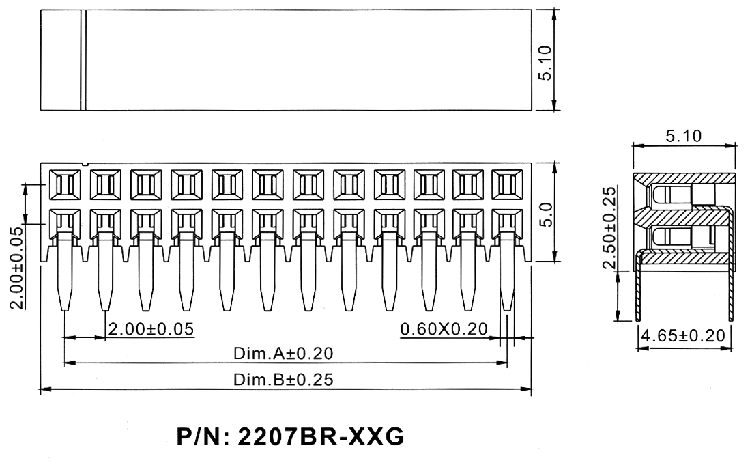

Drawing
|
|
|
|
1) Series:
2207
2) Insulator:
BR: side entrance
3) number of pins (4...80):
04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
06: 6 pins
xx: ...
80: 80 pins
4) Contact coverage:
G: gold plating
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 80823 |
2207BR-04G |
4 |
| 80824 |
2207BR-06G |
6 |
| 80825 |
2207BR-08G |
8 |
| 80826 |
2207BR-10G |
10 |
| 80827 |
2207BR-12G |
12 |
| 80828 |
2207BR-14G |
14 |
| 80829 |
2207BR-16G |
16 |
| 80830 |
2207BR-18G |
18 |
| 80831 |
2207BR-20G |
20 |
| 80832 |
2207BR-22G |
22 |
| 80833 |
2207BR-24G |
24 |
| 80834 |
2207BR-26G |
26 |
| 80835 |
2207BR-28G |
28 |
| 80836 |
2207BR-30G |
30 |
| 80837 |
2207BR-32G |
32 |
| 80838 |
2207BR-34G |
34 |
| 80839 |
2207BR-36G |
36 |
| 80840 |
2207BR-38G |
38 |
| 80841 |
2207BR-40G |
40 |
| 80842 |
2207BR-42G |
42 |
|
|
| 80843 |
2207BR-44G |
44 |
| 80844 |
2207BR-46G |
46 |
| 80845 |
2207BR-48G |
48 |
| 80846 |
2207BR-50G |
50 |
| 80847 |
2207BR-52G |
52 |
| 80848 |
2207BR-54G |
54 |
| 80849 |
2207BR-56G |
56 |
| 80850 |
2207BR-58G |
58 |
| 80851 |
2207BR-60G |
60 |
| 80852 |
2207BR-62G |
62 |
| 80853 |
2207BR-64G |
64 |
| 80854 |
2207BR-66G |
66 |
| 80855 |
2207BR-68G |
68 |
| 80856 |
2207BR-70G |
70 |
| 80857 |
2207BR-72G |
72 |
| 80858 |
2207BR-74G |
74 |
| 80859 |
2207BR-76G |
76 |
| 80860 |
2207BR-78G |
78 |
| 80861 |
2207BR-80G |
80 |
|
PCB layout
|
|
|
