| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0 mm |
2209SM-XXG-B2 series |
straight single row sockets for surface mounting (SMD) , pitch 2,0 mm
|

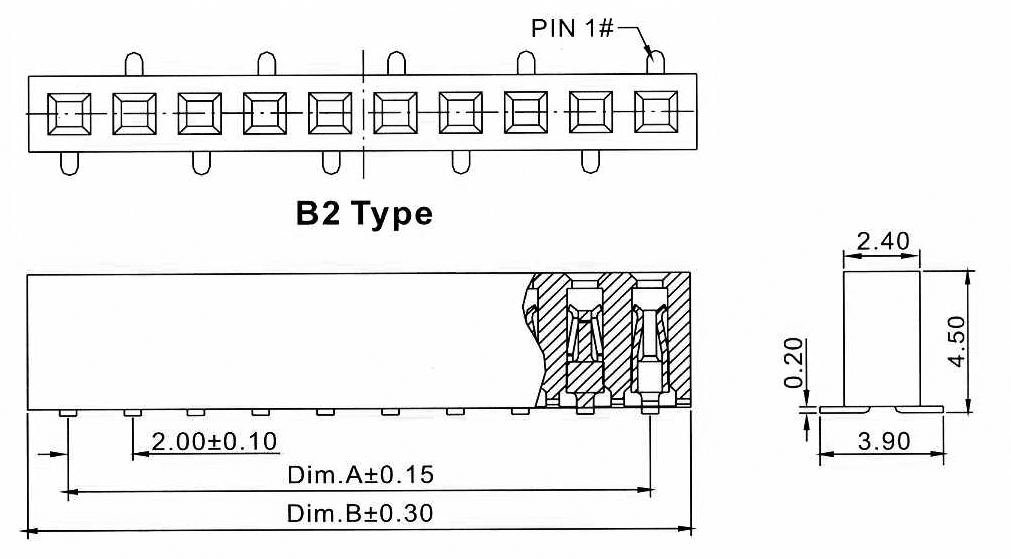

Drawing
|
| 2209 |
SM |
- |
02 |
G |
- |
B1 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2209
2) Insulator:
SM: for surface mounting (SMD)
3) number of pins (2...40):
02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, 03...09)
03: 3 pins
xx: ...
40: 40 pins
4) Contact coverage:
G: gold plating
5) mirror the location of the pins:
B1
B2
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 81139 |
2209SM-02G-B2 |
2 |
| 81140 |
2209SM-03G-B2 |
3 |
| 81141 |
2209SM-04G-B2 |
4 |
| 81142 |
2209SM-05G-B2 |
5 |
| 81143 |
2209SM-06G-B2 |
6 |
| 81144 |
2209SM-07G-B2 |
7 |
| 81145 |
2209SM-08G-B2 |
8 |
| 81146 |
2209SM-09G-B2 |
9 |
| 81147 |
2209SM-10G-B2 |
10 |
| 81148 |
2209SM-11G-B2 |
11 |
| 81149 |
2209SM-12G-B2 |
12 |
| 81150 |
2209SM-13G-B2 |
13 |
| 81151 |
2209SM-14G-B2 |
14 |
| 81152 |
2209SM-15G-B2 |
15 |
| 81153 |
2209SM-16G-B2 |
16 |
| 81154 |
2209SM-17G-B2 |
17 |
| 81155 |
2209SM-18G-B2 |
18 |
| 81156 |
2209SM-19G-B2 |
19 |
| 81157 |
2209SM-20G-B2 |
20 |
| 81158 |
2209SM-21G-B2 |
21 |
|
|
| 81159 |
2209SM-22G-B2 |
22 |
| 81160 |
2209SM-23G-B2 |
23 |
| 81161 |
2209SM-24G-B2 |
24 |
| 81162 |
2209SM-25G-B2 |
25 |
| 81163 |
2209SM-26G-B2 |
26 |
| 81164 |
2209SM-27G-B2 |
27 |
| 81165 |
2209SM-28G-B2 |
28 |
| 81166 |
2209SM-29G-B2 |
29 |
| 81167 |
2209SM-30G-B2 |
30 |
| 81168 |
2209SM-31G-B2 |
31 |
| 81169 |
2209SM-32G-B2 |
32 |
| 81170 |
2209SM-33G-B2 |
33 |
| 81171 |
2209SM-34G-B2 |
34 |
| 81172 |
2209SM-35G-B2 |
35 |
| 81173 |
2209SM-36G-B2 |
36 |
| 81174 |
2209SM-37G-B2 |
37 |
| 81175 |
2209SM-38G-B2 |
38 |
| 81176 |
2209SM-39G-B2 |
39 |
| 81177 |
2209SM-40G-B2 |
40 |
|
PCB layout
|
|
|
