| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2208R-XXG-SM-XXXX series |
plugs, pin, open angle, double row, for surface mounting (SMD) , pitch 2,0x2,0 mm
|

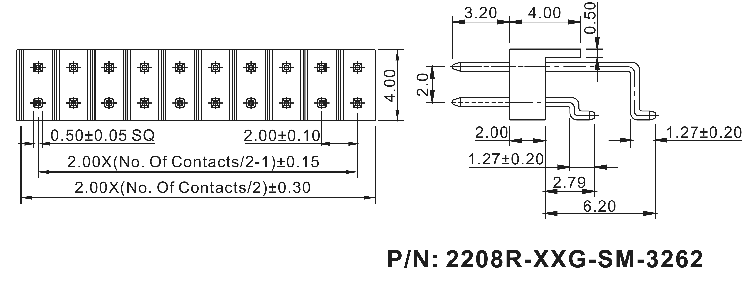

Drawing
|
| 2208 |
R |
- |
02 |
G |
- |
SM |
- |
3262 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
6 |
|
|
1) Series:
2208
2) Type:
R: angle
3) number of pins (2...80):
02: 2 pin (padded with zeros in front if less than 10 pins, i.e.: 02, ... 08)
04: 4 pins
xx: ...
80: 80 pins
4) Contact coverage:
G: gold plating
5) Insulator:
SM: for surface mounting (SMD)
6) Dimensions pins in tenths of mm (standard 3,2 & 6,2 mm):
XXXX
|
|
Plugs, pin, open angle, double row, for surface mounting (SMD) of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 81532 |
2208R-02G-SM-3262 |
2 |
| 81533 |
2208R-04G-SM-3262 |
4 |
| 81534 |
2208R-06G-SM-3262 |
6 |
| 81535 |
2208R-08G-SM-3262 |
8 |
| 81536 |
2208R-10G-SM-3262 |
10 |
| 81537 |
2208R-12G-SM-3262 |
12 |
| 81538 |
2208R-14G-SM-3262 |
14 |
| 81539 |
2208R-16G-SM-3262 |
16 |
| 81540 |
2208R-18G-SM-3262 |
18 |
| 81541 |
2208R-20G-SM-3262 |
20 |
| 81542 |
2208R-22G-SM-3262 |
22 |
| 81543 |
2208R-24G-SM-3262 |
24 |
| 81544 |
2208R-26G-SM-3262 |
26 |
| 81545 |
2208R-28G-SM-3262 |
28 |
| 81546 |
2208R-30G-SM-3262 |
30 |
| 81547 |
2208R-32G-SM-3262 |
32 |
| 81548 |
2208R-34G-SM-3262 |
34 |
| 81549 |
2208R-36G-SM-3262 |
36 |
| 81550 |
2208R-38G-SM-3262 |
38 |
| 81551 |
2208R-40G-SM-3262 |
40 |
|
|
| 81552 |
2208R-42G-SM-3262 |
42 |
| 81553 |
2208R-44G-SM-3262 |
44 |
| 81554 |
2208R-46G-SM-3262 |
46 |
| 81555 |
2208R-48G-SM-3262 |
48 |
| 81556 |
2208R-50G-SM-3262 |
50 |
| 81557 |
2208R-52G-SM-3262 |
52 |
| 81558 |
2208R-54G-SM-3262 |
54 |
| 81559 |
2208R-56G-SM-3262 |
56 |
| 81560 |
2208R-58G-SM-3262 |
58 |
| 81561 |
2208R-60G-SM-3262 |
60 |
| 81562 |
2208R-62G-SM-3262 |
62 |
| 81563 |
2208R-64G-SM-3262 |
64 |
| 81564 |
2208R-66G-SM-3262 |
66 |
| 81565 |
2208R-68G-SM-3262 |
68 |
| 81566 |
2208R-70G-SM-3262 |
70 |
| 81567 |
2208R-72G-SM-3262 |
72 |
| 81568 |
2208R-74G-SM-3262 |
74 |
| 81569 |
2208R-76G-SM-3262 |
76 |
| 81570 |
2208R-78G-SM-3262 |
78 |
| 81571 |
2208R-80G-SM-3262 |
80 |
|
PCB layout
|
|
|
