| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,0x2,0 mm |
2208DI-XXG-2400 series |
plugs pin open straight double row with double insulator on Board for mounting in holes, pitch 2,0x2,0 mm
|

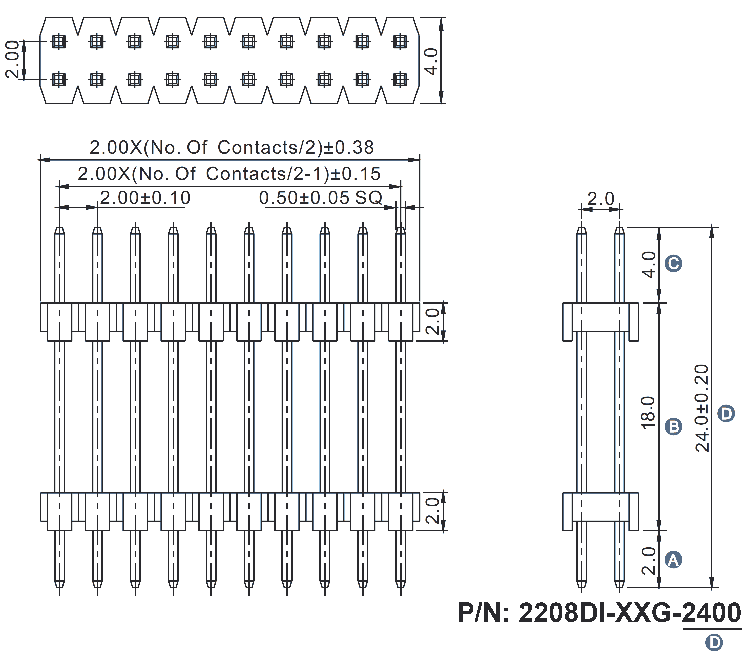

Drawing
|
| 2208 |
DI |
- |
04 |
G |
- |
2400 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) Series:
2208
2) Insulator:
DI: double insulator
3) number of pins (4...80):
04: 4 pin (padded with zeros in front if less than 10 pins, i.e.: 04, ... 08)
04: 4 pins
xx: ...
80: 80 pins
4) Contact coverage:
G: gold plating
T: tin plating
5) size C in tenths of mm:
2400
|
|
Plugs pin open straight double row with double insulator on Board for mounting in holes of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 67012 |
2208DI-04G-2400 (2x2) |
4 |
| 67013 |
2208DI-06G-2400 (2x3) |
6 |
| 149048 |
2208DI-08G-1750 (2x4) |
8 |
| 161823 |
2208DI-08G-1750-1 (2x4) |
8 |
| 67014 |
2208DI-08G-2400 (2x4) |
8 |
| 67015 |
2208DI-10G-2400 (2x5) |
10 |
| 67016 |
2208DI-12G-2400 (2x6) |
12 |
| 67017 |
2208DI-14G-2400 (2x7) |
14 |
| 67018 |
2208DI-16G-2400 (2x8) |
16 |
| 67019 |
2208DI-18G-2400 (2x9) |
18 |
| 67020 |
2208DI-20G-2400 (2x10) |
20 |
| 120956 |
2208DI-20G-2550 (2x10) |
20 |
| 130107 |
2208DI-22G-1200 (2x11) |
22 |
| 67021 |
2208DI-22G-2400 (2x11) |
22 |
| 68261 |
2208DI-24G-2400 (2x12) |
24 |
| 147215 |
2208DI-26G-1200 (2x13) |
26 |
| 67022 |
2208DI-26G-2400 (2x13) |
26 |
| 67023 |
2208DI-28G-2400 (2x14) |
28 |
| 67024 |
2208DI-30G-2400 (2x15) |
30 |
| 67025 |
2208DI-32G-2400 (2x16) |
32 |
| 67026 |
2208DI-34G-2400 (2x17) |
34 |
| 67027 |
2208DI-36G-2400 (2x18) |
36 |
| 67028 |
2208DI-38G-2400 (2x19) |
38 |
|
|
| 119934 |
2208DI-40G-1750 (2x20) |
40 |
| 67029 |
2208DI-40G-2400 (2x20) |
40 |
| 119935 |
2208DI-40G-3750 (2x20) |
40 |
| 67030 |
2208DI-42G-2400 (2x21) |
42 |
| 67031 |
2208DI-44G-2400 (2x22) |
44 |
| 67032 |
2208DI-46G-2400 (2x23) |
46 |
| 67033 |
2208DI-48G-2400 (2x24) |
48 |
| 67034 |
2208DI-50G-2400 (2x25) |
50 |
| 67035 |
2208DI-52G-2400 (2x26) |
52 |
| 67036 |
2208DI-54G-2400 (2x27) |
54 |
| 67037 |
2208DI-56G-2400 (2x28) |
56 |
| 67038 |
2208DI-58G-2400 (2x29) |
58 |
| 67039 |
2208DI-60G-2400 (2x30) |
60 |
| 67040 |
2208DI-62G-2400 (2x31) |
62 |
| 67041 |
2208DI-64G-2400 (2x32) |
64 |
| 67042 |
2208DI-66G-2400 (2x33) |
66 |
| 67043 |
2208DI-68G-2400 (2x34) |
68 |
| 67044 |
2208DI-70G-2400 (2x35) |
70 |
| 67045 |
2208DI-72G-2400 (2x36) |
72 |
| 67046 |
2208DI-74G-2400 (2x37) |
74 |
| 67047 |
2208DI-76G-2400 (2x38) |
76 |
| 67048 |
2208DI-78G-2400 (2x39) |
78 |
| 40004 |
2208DI-80G-2400 (2x40) |
80 |
|
PCB layout
|
|
|
