BL1315-22xxR1-1.5 series

double-row pin plugs with double insulator corner, pitch 2,0x2,0 mm

BL1315-22xxR1-1.5 series, double-row pin plugs with double insulator corner, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

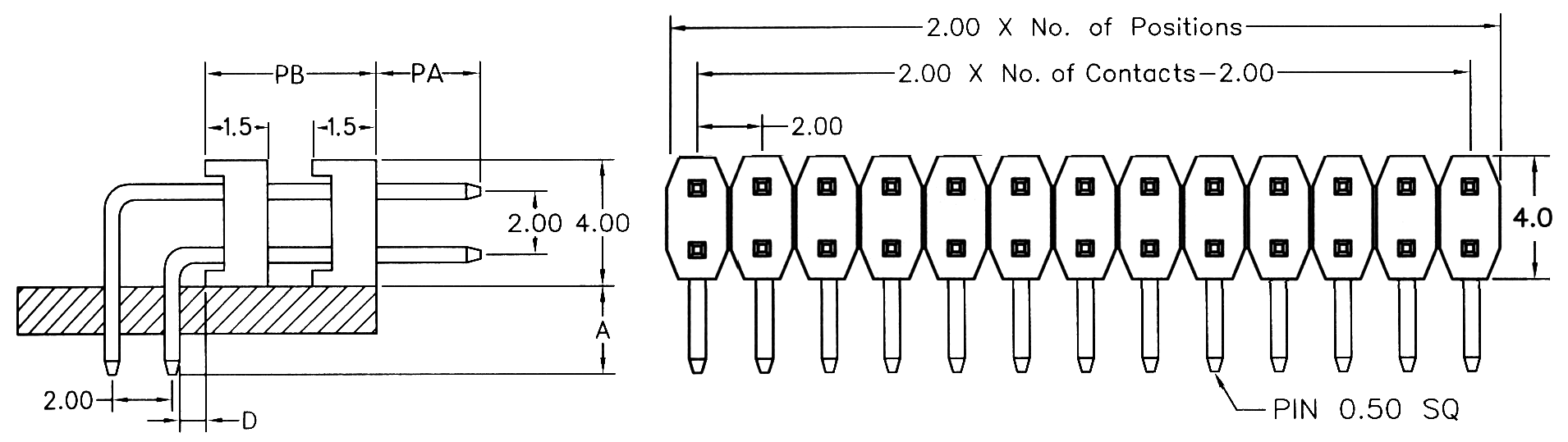

Drawing

BL1315	-	2	2	XX	R	G	-	2807515040
1		2	3	4	5	6		7

1) Series:
     BL1315
2) Number of insulators:
     2: two
3) Number of rows:
     2: two
4) number of pins (2...80):
     XX
5) Type:
     S: straight
     R: angle
     M: vertical for surface mounting (SMD)
     Z: horizontal for surface mounting (SMD)
6) Contact coverage:
     G: gold plating
     T: tin plating
7) Dimensions PC, D, PB, PA in tenths of mm:
     2807515040: (standard) PC=2,8 mm, D=0,75 mm, PB=15,0 mm, PA=4,0 mm

Double-row pin plugs with double insulator corner of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
96082	BL1315-2202R1-1.5	2
96083	BL1315-2204R1-1.5	4
96084	BL1315-2206R1-1.5	6
96085	BL1315-2208R1-1.5	8
96086	BL1315-2210R1-1.5	10
96087	BL1315-2212R1-1.5	12
96088	BL1315-2214R1-1.5	14
96089	BL1315-2216R1-1.5	16
96090	BL1315-2218R1-1.5	18
96091	BL1315-2220R1-1.5	20
96092	BL1315-2222R1-1.5	22
96093	BL1315-2224R1-1.5	24
96094	BL1315-2226R1-1.5	26
96095	BL1315-2228R1-1.5	28
96096	BL1315-2230R1-1.5	30
96097	BL1315-2232R1-1.5	32
96098	BL1315-2234R1-1.5	34
96099	BL1315-2236R1-1.5	36
96100	BL1315-2238R1-1.5	38
96101	BL1315-2240R1-1.5	40

ID	Part.No.	number of contacts
96102	BL1315-2242R1-1.5	42
96103	BL1315-2244R1-1.5	44
96104	BL1315-2246R1-1.5	46
96105	BL1315-2248R1-1.5	48
96106	BL1315-2250R1-1.5	50
96107	BL1315-2252R1-1.5	52
96108	BL1315-2254R1-1.5	54
96109	BL1315-2256R1-1.5	56
96110	BL1315-2258R1-1.5	58
96111	BL1315-2260R1-1.5	60
96112	BL1315-2262R1-1.5	62
96113	BL1315-2264R1-1.5	64
96114	BL1315-2266R1-1.5	66
96115	BL1315-2268R1-1.5	68
96116	BL1315-2270R1-1.5	70
96117	BL1315-2272R1-1.5	72
96118	BL1315-2274R1-1.5	74
96119	BL1315-2276R1-1.5	76
96170	BL1315-2278R1-1.5	78
96171	BL1315-2280R1-1.5	80
