BL1320-21xxR series

two-row pin plugs (jumpers), pitch 2,0x2,0 mm

BL1320-21xxR series, two-row pin plugs (jumpers), pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

Drawing

BL1320	-	1	2	XX	R	G	-	2840075
1		2	3	4	5	6		7

1) Series:
     BL1320
2) Insulator:
     1: one
3) Number of rows:
     2: two
4) number of pins (1...40):
     XX
5) Type:
     S: straight
     R: angle
     M: vertical for surface mounting (SMD)
     Z: horizontal for surface mounting (SMD)
6) Contact coverage:
     G: gold plating
     T: tin plating
7) Dimensions PC, W, D in tenths of mm:
     2840075: (standard) PC=2,8 mm, W=4,0 mm, D=0,75 mm

Two-row pin plugs (jumpers) of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

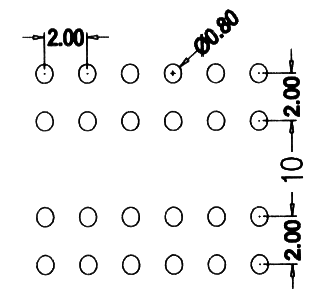

PCB layout

ID	Part.No.	number of contacts
96482	BL1320-1201R	2
96483	BL1320-1202R	4
96484	BL1320-1203R	6
96485	BL1320-1204R	8
96486	BL1320-1205R	10
96487	BL1320-1206R	12
96488	BL1320-1207R	14
96489	BL1320-1208R	16
96490	BL1320-1209R	18
96491	BL1320-1210R	20
96492	BL1320-1211R	22
96493	BL1320-1212R	24
96494	BL1320-1213R	26
96495	BL1320-1214R	28
96496	BL1320-1215R	30
96497	BL1320-1216R	32
96498	BL1320-1217R	34
96499	BL1320-1218R	36
96500	BL1320-1219R	38
96501	BL1320-1220R	40

ID	Part.No.	number of contacts
96502	BL1320-1221R	42
96503	BL1320-1222R	44
96504	BL1320-1223R	46
96505	BL1320-1224R	48
96506	BL1320-1225R	50
96507	BL1320-1226R	52
96508	BL1320-1227R	54
96509	BL1320-1228R	56
96510	BL1320-1229R	58
96511	BL1320-1230R	60
96512	BL1320-1231R	62
96513	BL1320-1232R	64
96514	BL1320-1233R	66
96515	BL1320-1234R	68
96516	BL1320-1235R	70
96517	BL1320-1236R	72
96518	BL1320-1237R	74
96519	BL1320-1238R	76
96570	BL1320-1239R	78
96571	BL1320-1240R	80
