BL1320-12xxZ-PG series

double-row pin plugs for surface mounting (SMD) horizontal with guides in the Board, pitch 2,0x2,0 mm

BL1320-12xxZ-PG series, double-row pin plugs for surface mounting (SMD) horizontal with guides in the Board, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

Drawing

BL1320	-	1	2	XX	Z	G	-	6640
1		2	3	4	5	6		7

1) Series:
     BL1320
2) Insulator:
     1: one
3) Number of rows:
     2: two
4) number of pins (2...80):
     XX
5) Type:
     S: straight
     R: angle
     M: vertical for surface mounting (SMD)
     Z: horizontal for surface mounting (SMD)
6) Contact coverage:
     G: gold plating
     T: tin plating
7) Dimensions PC, PA in tenths of mm:
     2840: (standard) PC=6,6 mm, PA=4,0 mm

Double-row pin plugs for surface mounting (SMD) horizontal with guides in the Board of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

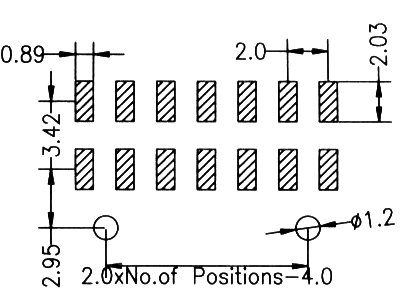

PCB layout

ID	Part.No.	number of contacts
96820	BL1320-1202Z-PG	2
96821	BL1320-1204Z-PG	4
96822	BL1320-1206Z-PG	6
96823	BL1320-1208Z-PG	8
96824	BL1320-1210Z-PG	10
96825	BL1320-1212Z-PG	12
96826	BL1320-1214Z-PG	14
96827	BL1320-1216Z-PG	16
96828	BL1320-1218Z-PG	18
96829	BL1320-1220Z-PG	20
96830	BL1320-1222Z-PG	22
96831	BL1320-1224Z-PG	24
96832	BL1320-1226Z-PG	26
96833	BL1320-1228Z-PG	28
96834	BL1320-1230Z-PG	30
96835	BL1320-1232Z-PG	32
96836	BL1320-1234Z-PG	34
96837	BL1320-1236Z-PG	36
96838	BL1320-1238Z-PG	38
96839	BL1320-1240Z-PG	40

ID	Part.No.	number of contacts
96840	BL1320-1242Z-PG	42
96841	BL1320-1244Z-PG	44
96842	BL1320-1246Z-PG	46
96843	BL1320-1248Z-PG	48
96844	BL1320-1250Z-PG	50
96845	BL1320-1252Z-PG	52
96846	BL1320-1254Z-PG	54
96847	BL1320-1256Z-PG	56
96848	BL1320-1258Z-PG	58
96849	BL1320-1260Z-PG	60
96850	BL1320-1262Z-PG	62
96851	BL1320-1264Z-PG	64
96852	BL1320-1266Z-PG	66
96853	BL1320-1268Z-PG	68
96854	BL1320-1270Z-PG	70
96855	BL1320-1272Z-PG	72
96856	BL1320-1274Z-PG	74
96857	BL1320-1276Z-PG	76
96858	BL1320-1278Z-PG	78
96859	BL1320-1280Z-PG	80
