BL1315-24xxR1-1.5 series

plugs pin four-row angular with a double insulator angular, pitch 2,0x2,0 mm

BL1315-24xxR1-1.5 series, plugs pin four-row angular with a double insulator angular, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

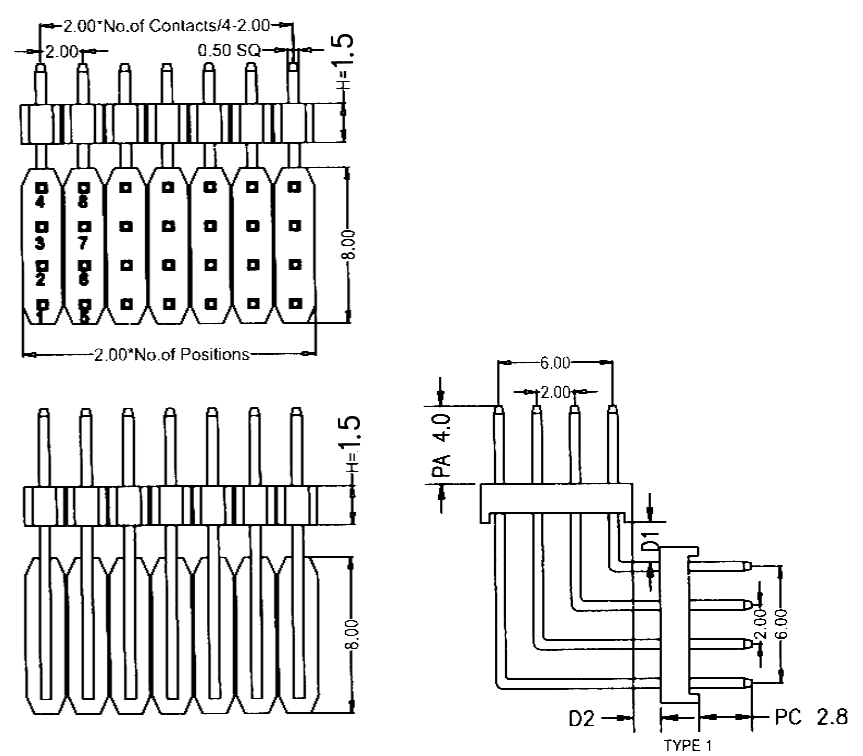

Drawing

BL1315	-	2	4	XXX	R	G	-	40285050
1		2	3	4	5	6		7

1) Series:
     BL1315
2) Number of insulators:
     2: two
3) Number of rows:
     4: four
4) number of pins (4...160):
     XXX
5) Type:
     S: straight
     R: angle
     M: vertical for surface mounting (SMD)
     Z: horizontal for surface mounting (SMD)
6) Contact coverage:
     G: gold plating
     T: tin plating
7) Dimensions PA, PC, D1, D2 in tenths of mm:
     40285050: (standard) PA=4,0 mm, PC=2,8 mm, D1=5,0 mm, D2=5,0 mm

Plugs pin four-row angular with a double insulator angular of this series are made in the form of a comb 4x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 4, 8, 12... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 1.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
97180	BL1315-24004R1-1.5	4
97181	BL1315-24008R1-1.5	8
97182	BL1315-24012R1-1.5	12
97183	BL1315-24016R1-1.5	16
97184	BL1315-24020R1-1.5	20
97185	BL1315-24024R1-1.5	24
97186	BL1315-24028R1-1.5	28
97187	BL1315-24032R1-1.5	32
97188	BL1315-24036R1-1.5	36
97189	BL1315-24040R1-1.5	40
97190	BL1315-24044R1-1.5	44
97191	BL1315-24048R1-1.5	48
97192	BL1315-24052R1-1.5	52
97193	BL1315-24056R1-1.5	56
97194	BL1315-24060R1-1.5	60
97195	BL1315-24064R1-1.5	64
97196	BL1315-24068R1-1.5	68
97197	BL1315-24072R1-1.5	72
97198	BL1315-24076R1-1.5	76
97199	BL1315-24080R1-1.5	80

ID	Part.No.	number of contacts
97200	BL1315-24084R1-1.5	84
97201	BL1315-24088R1-1.5	88
97202	BL1315-24092R1-1.5	92
97203	BL1315-24096R1-1.5	96
97204	BL1315-24100R1-1.5	100
97205	BL1315-24104R1-1.5	104
97206	BL1315-24108R1-1.5	108
97207	BL1315-24112R1-1.5	112
97208	BL1315-24116R1-1.5	116
97209	BL1315-24120R1-1.5	120
97210	BL1315-24124R1-1.5	124
97211	BL1315-24128R1-1.5	128
97212	BL1315-24132R1-1.5	132
97213	BL1315-24136R1-1.5	136
97214	BL1315-24140R1-1.5	140
97215	BL1315-24144R1-1.5	144
97216	BL1315-24148R1-1.5	148
97217	BL1315-24152R1-1.5	152
97218	BL1315-24156R1-1.5	156
97219	BL1315-24160R1-1.5	160

BL1315-24xxR1-1.5 series, plugs pin four-row angular with a double insulator angular, pitch 2,0x2,0 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,0x2,0 mm

PCB layout
