| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,54x2,54 mm |
2213R-XXG-XXXXXX (PLD-XXR) series |
pin headers angled double row on Board for mounting in holes, pitch 2,54x2,54 mm
|

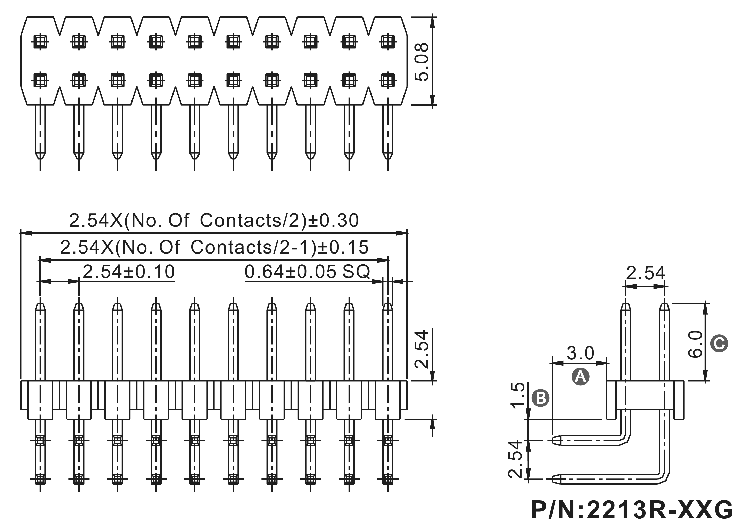

Drawing
|
| 2213 |
R |
- |
02 |
G |
- |
XXXXXX |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) series:
2213
2) insulator:
R: angular
3) number of pins (2...80):
02: 2 pins (supplemented with zeros in front, if less than 10 contacts, i.e.: 02, 04...08)
04: 4 pins
xx: ...
80: 80 pins
4) plating:
G: gilding
T: tinning
5) dimensions A, B, C in tenths of mm (if not specified, standard 301560 = 3,0, 1,5, 6,0 mm)
XXXXXX
|
|
Pin headers angled double row on Board for mounting in holes of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 84275 |
2213R-02G (PLD-2R) |
2 |
| 64595 |
2213R-04G (PLD-4R) |
4 |
| 64596 |
2213R-06G (PLD-6R) |
6 |
| 64597 |
2213R-08G (PLD-8R) |
8 |
| 23140 |
2213R-10G (PLD-10R) |
10 |
| 64598 |
2213R-12G (PLD-12R) |
12 |
| 64599 |
2213R-14G (PLD-14R) |
14 |
| 64600 |
2213R-16G (PLD-16R) |
16 |
| 64601 |
2213R-18G (PLD-18R) |
18 |
| 17225 |
2213R-20G (PLD-20R) |
20 |
| 64602 |
2213R-22G (PLD-22R) |
22 |
| 64603 |
2213R-24G (PLD-24R) |
24 |
| 64604 |
2213R-26G (PLD-26R) |
26 |
| 64605 |
2213R-28G (PLD-28R) |
28 |
| 64606 |
2213R-30G (PLD-30R) |
30 |
| 64607 |
2213R-32G (PLD-32R) |
32 |
| 69032 |
2213R-34G (PLD-34R) |
34 |
| 64608 |
2213R-36G (PLD-36R) |
36 |
| 69033 |
2213R-38G (PLD-38R) |
38 |
| 64609 |
2213R-40G (PLD-40R) |
40 |
| 69034 |
2213R-42G (PLD-42R) |
42 |
| 69035 |
2213R-44G (PLD-44R) |
44 |
| 69036 |
2213R-46G (PLD-46R) |
46 |
| 69037 |
2213R-48G (PLD-48R) |
48 |
| 64610 |
2213R-50G (PLD-50R) |
50 |
| 69038 |
2213R-52G (PLD-52R) |
52 |
| 69039 |
2213R-54G (PLD-54R) |
54 |
| 69040 |
2213R-56G (PLD-56R) |
56 |
| 69041 |
2213R-58G (PLD-58R) |
58 |
| 64611 |
2213R-60G (PLD-60R) |
60 |
| 69042 |
2213R-62G (PLD-62R) |
62 |
| 64612 |
2213R-64G (PLD-64R) |
64 |
| 69043 |
2213R-66G (PLD-66R) |
66 |
| 69044 |
2213R-68G (PLD-68R) |
68 |
| 69045 |
2213R-70G (PLD-70R) |
70 |
| 64613 |
2213R-72G (PLD-72R) |
72 |
| 69046 |
2213R-74G (PLD-74R) |
74 |
| 69047 |
2213R-76G (PLD-76R) |
76 |
| 24130 |
2213R-78G (PLD-78R) |
78 |
| 17404 |
2213R-80G (PLD-80R) |
80 |
|
PCB layout
|
|
|
