| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,54x2,54 mm |
2233DI-XXXG-XXXX (PLHT-XXX) series |
pin headers straight with double insulator three-row on Board for mounting in holes, pitch 2,54x2,54 mm
|
Drawing
|
| 2233 |
DI |
- |
003 |
G |
- |
XXXX |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) series:
2233
2) insulator:
DI: double insulator
3) number of pins (3...120):
003: 3 pins
006: 6 pins
xxx: ...
120: 120 pins
4) plating:
G: gilding
T: tinning
5) size D in hundredths of mm (if not specified, standard 2616 = 26,16 mm)
XXXX
|
|
Pin headers straight with double insulator three-row on Board for mounting in holes of this series are made in the form of a comb 3x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 3, 6, 9... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+115°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

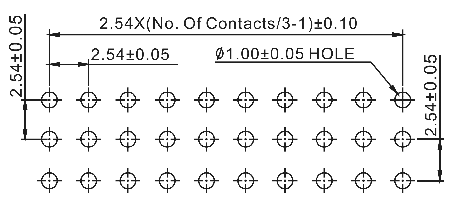

PCB layout
 |
| 69617 |
2233DI-006G-2616 (3x2) |
6 |
| 69618 |
2233DI-009G-2616 (3x3) |
9 |
| 69619 |
2233DI-012G-2616 (3x4) |
12 |
| 69620 |
2233DI-015G-2616 (3x5) |
15 |
| 69621 |
2233DI-018G-2616 (3x6) |
18 |
| 69622 |
2233DI-021G-2616 (3x7) |
21 |
| 69623 |
2233DI-024G-2616 (3x8) |
24 |
| 69624 |
2233DI-027G-2616 (3x9) |
27 |
| 69625 |
2233DI-030G-2616 (3x10) |
30 |
| 69626 |
2233DI-033G-2616 (3x11) |
33 |
| 69627 |
2233DI-036G-2616 (3x12) |
36 |
| 69628 |
2233DI-039G-2616 (3x13) |
39 |
| 69629 |
2233DI-042G-2616 (3x14) |
42 |
| 69630 |
2233DI-045G-2616 (3x15) |
45 |
| 69631 |
2233DI-048G-2616 (3x16) |
48 |
| 69632 |
2233DI-051G-2616 (3x17) |
51 |
| 69633 |
2233DI-054G-2616 (3x18) |
54 |
| 69634 |
2233DI-057G-2616 (3x19) |
57 |
| 69635 |
2233DI-060G-2616 (3x20) |
60 |
| 69636 |
2233DI-063G-2616 (3x21) |
63 |
| 69637 |
2233DI-066G-2616 (3x22) |
66 |
| 69638 |
2233DI-069G-2616 (3x23) |
69 |
| 69639 |
2233DI-072G-2616 (3x24) |
72 |
| 69640 |
2233DI-075G-2616 (3x25) |
75 |
| 69641 |
2233DI-078G-2616 (3x26) |
78 |
| 69642 |
2233DI-081G-2616 (3x27) |
81 |
| 69643 |
2233DI-084G-2616 (3x28) |
84 |
| 69644 |
2233DI-087G-2616 (3x29) |
87 |
| 69645 |
2233DI-090G-2616 (3x30) |
90 |
| 69646 |
2233DI-093G-2616 (3x31) |
93 |
| 69647 |
2233DI-096G-2616 (3x32) |
96 |
| 69648 |
2233DI-099G-2616 (3x33) |
99 |
| 69649 |
2233DI-102G-2616 (3x34) |
102 |
| 69650 |
2233DI-105G-2616 (3x35) |
105 |
| 69651 |
2233DI-108G-2616 (3x36) |
108 |
| 69652 |
2233DI-111G-2616 (3x37) |
111 |
| 69653 |
2233DI-114G-2616 (3x38) |
114 |
| 69654 |
2233DI-117G-2616 (3x39) |
117 |
| 69655 |
2233DI-120G-2616 (3x40) |
120 |
|
PCB layout
|
|
|
