| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,54x2,54 mm |
2214SM-XXG-62 series |
double row straight sockets on the board for surface mounting (SMD) , pitch 2,54x2,54 mm
|

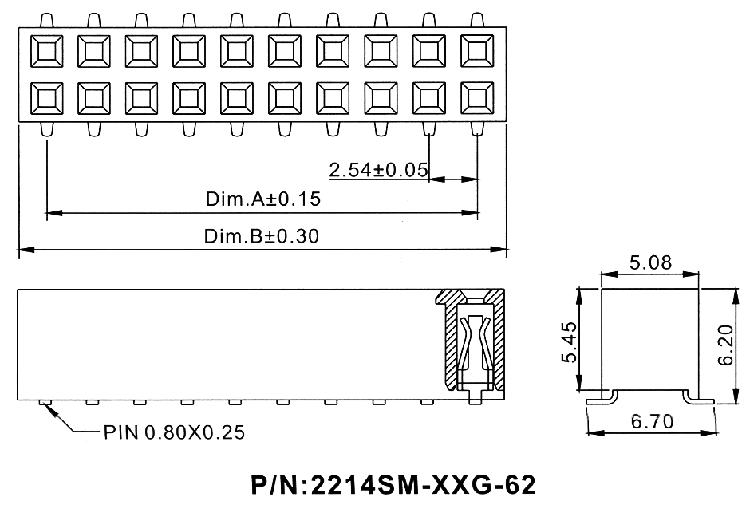

Drawing
|
| 2214 |
SM |
- |
04 |
G |
- |
62 |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
|
1) series:
2214
2) insulator:
SM: for surface mounting
3) number of pins (4...80):
04: 4 pins (supplemented with zeros in front, if less than 10 contacts, i.e.: 04, ... 08)
06: 6 pins
xx: ...
80: 80 pins
4) plating:
G: gilding
5) insulator height in tenths of mm:
62
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
