| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,54x2,54 mm |
2214SM-XXG-62-PCP series |
double row straight sockets on Board for surface mounting (SMD) with gripper, pitch 2,54x2,54 mm
|

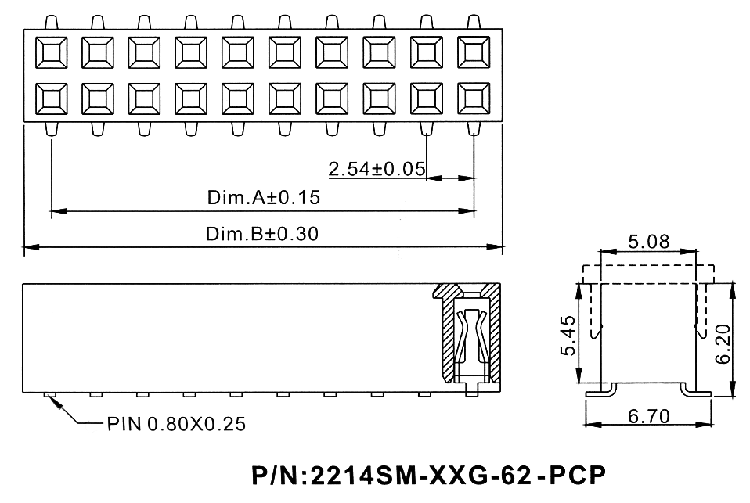

Drawing
|
| 2214 |
SM |
- |
04 |
G |
- |
62 |
- |
PCP |
| 1 |
2 |
|
3 |
4 |
|
5 |
|
6 |
|
|
1) series:
2214
2) insulator:
SM: for surface mounting
3) number of pins (4...80):
04: 4 pins (supplemented with zeros in front, if less than 10 contacts, i.e.: 04, ... 08)
06: 6 pins
xx: ...
80: 80 pins
4) plating:
G: gilding
5) insulator height in tenths of mm:
62
6) the presence of the cover for the capture of the automatic installation:
PCP
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 85021 |
2214SM-04G-62-PCP |
4 |
| 85022 |
2214SM-06G-62-PCP |
6 |
| 85023 |
2214SM-08G-62-PCP |
8 |
| 85024 |
2214SM-10G-62-PCP |
10 |
| 85025 |
2214SM-12G-62-PCP |
12 |
| 85026 |
2214SM-14G-62-PCP |
14 |
| 85027 |
2214SM-16G-62-PCP |
16 |
| 85028 |
2214SM-18G-62-PCP |
18 |
| 85029 |
2214SM-20G-62-PCP |
20 |
| 85030 |
2214SM-22G-62-PCP |
22 |
| 85031 |
2214SM-24G-62-PCP |
24 |
| 85032 |
2214SM-26G-62-PCP |
26 |
| 85033 |
2214SM-28G-62-PCP |
28 |
| 85034 |
2214SM-30G-62-PCP |
30 |
| 85035 |
2214SM-32G-62-PCP |
32 |
| 85036 |
2214SM-34G-62-PCP |
34 |
| 85037 |
2214SM-36G-62-PCP |
36 |
| 85038 |
2214SM-38G-62-PCP |
38 |
| 85039 |
2214SM-40G-62-PCP |
40 |
| 85040 |
2214SM-42G-62-PCP |
42 |
| 85041 |
2214SM-44G-62-PCP |
44 |
| 85042 |
2214SM-46G-62-PCP |
46 |
| 85043 |
2214SM-48G-62-PCP |
48 |
| 85045 |
2214SM-52G-62-PCP |
52 |
| 85046 |
2214SM-54G-62-PCP |
54 |
| 85047 |
2214SM-56G-62-PCP |
56 |
| 85048 |
2214SM-58G-62-PCP |
58 |
| 85049 |
2214SM-60G-62-PCP |
60 |
| 85044 |
2214SM-62G-62-PCP |
62 |
| 85050 |
2214SM-64G-62-PCP |
64 |
| 85051 |
2214SM-66G-62-PCP |
66 |
| 85052 |
2214SM-68G-62-PCP |
68 |
| 85053 |
2214SM-70G-62-PCP |
70 |
| 85054 |
2214SM-72G-62-PCP |
72 |
| 85055 |
2214SM-74G-62-PCP |
74 |
| 85056 |
2214SM-76G-62-PCP |
76 |
| 85057 |
2214SM-78G-62-PCP |
78 |
| 85058 |
2214SM-80G-62-PCP |
80 |
|
PCB layout
|
|
|
