2214SM-XXG-75-PCG series

double-row straight sockets with guides for surface mounting (SMD) with gripper, pitch 2,54x2,54 mm

2214SM-XXG-75-PCG series, double-row straight sockets with guides for surface mounting (SMD) with gripper, pitch 2,54x2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54x2,54 mm

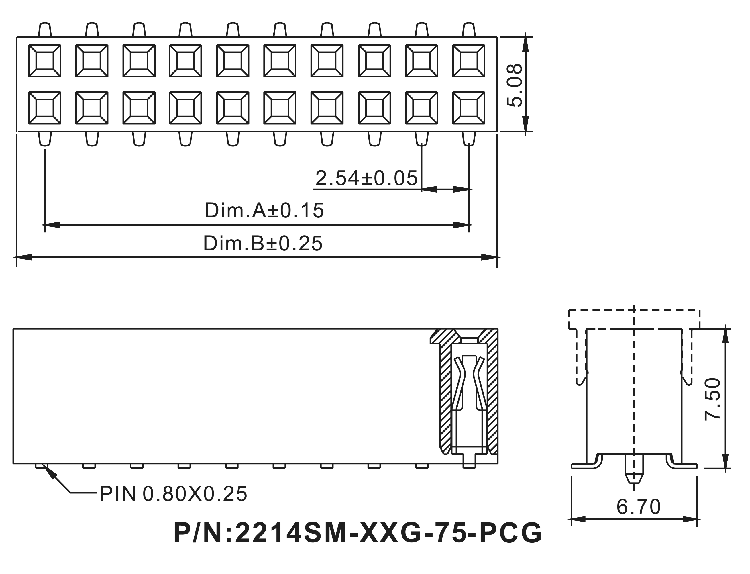

Drawing

2214	SM	-	04	G	-	75	-	PCG
1	2		3	4		5		6

1) series:
     2214
2) insulator:
     SM: for surface mounting
3) number of pins (4...80):
     04: 4 pins (supplemented with zeros in front, if less than 10 contacts, i.e.: 04, ... 08)
     06: 6 pins
     xx: ...
     80: 80 pins
4) plating:
     G: gilding
5) insulator height in tenths of mm:
     75
6) guides to PCB � the presence of the cover for the capture of the automatic installation
     PCG

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
85253	2214SM-04G-75-PCG	4
85254	2214SM-06G-75-PCG	6
85255	2214SM-08G-75-PCG	8
85256	2214SM-10G-75-PCG	10
85257	2214SM-12G-75-PCG	12
85258	2214SM-14G-75-PCG	14
66409	2214SM-16G-75-PCG	16
85259	2214SM-18G-75-PCG	18
85260	2214SM-20G-75-PCG	20
85261	2214SM-22G-75-PCG	22
85262	2214SM-24G-75-PCG	24
85263	2214SM-26G-75-PCG	26
85264	2214SM-28G-75-PCG	28
85265	2214SM-30G-75-PCG	30
85266	2214SM-32G-75-PCG	32
85267	2214SM-34G-75-PCG	34
85268	2214SM-36G-75-PCG	36
85269	2214SM-38G-75-PCG	38
85270	2214SM-40G-75-PCG	40
85271	2214SM-42G-75-PCG	42
85272	2214SM-44G-75-PCG	44
85273	2214SM-46G-75-PCG	46
85274	2214SM-48G-75-PCG	48
85275	2214SM-50G-75-PCG	50
85276	2214SM-52G-75-PCG	52
85277	2214SM-54G-75-PCG	54
85278	2214SM-56G-75-PCG	56
85279	2214SM-58G-75-PCG	58
85280	2214SM-60G-75-PCG	60
85281	2214SM-62G-75-PCG	62
85282	2214SM-64G-75-PCG	64
85283	2214SM-66G-75-PCG	66
85284	2214SM-68G-75-PCG	68
85285	2214SM-70G-75-PCG	70
85286	2214SM-72G-75-PCG	72
85287	2214SM-74G-75-PCG	74
85288	2214SM-76G-75-PCG	76
85289	2214SM-78G-75-PCG	78
85290	2214SM-80G-75-PCG	80
