BL1A25-12xxR series

pin headers, double row, corner, pitch 2,54x2,54 mm

BL1A25-12xxR series, pin headers, double row, corner, pitch 2,54x2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54x2,54 mm

Drawing

BL1A25	-	1	2	XX	R
1		2	3	4	5

1) series:
     BL1A25: H=2,54mm
2) insulator:
     1: one
3) Number of rows:
     2: two
4) number of pins in a row (1x40, 2x40):
     01 ... 40
5) Type:
     R: angular

Pin headers, double row, corner of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+164°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

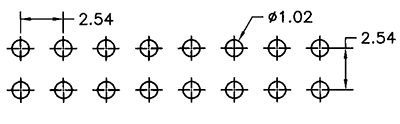

PCB layout

ID	Part.No.	number of contacts
185250	BL1A25-1201R	1
185251	BL1A25-1202R	2
185252	BL1A25-1203R	3
185253	BL1A25-1204R	4
185254	BL1A25-1205R	5
185255	BL1A25-1206R	6
185256	BL1A25-1207R	7
185257	BL1A25-1208R	8
185258	BL1A25-1209R	9
185259	BL1A25-1210R	10
185260	BL1A25-1211R	11
185261	BL1A25-1212R	12
185262	BL1A25-1213R	13
185263	BL1A25-1214R	14
185264	BL1A25-1215R	15
185265	BL1A25-1216R	16
185266	BL1A25-1217R	17
185267	BL1A25-1218R	18
185268	BL1A25-1219R	19
185269	BL1A25-1220R	20
185270	BL1A25-1221R	21
185271	BL1A25-1222R	22
185272	BL1A25-1223R	23
185273	BL1A25-1224R	24
185274	BL1A25-1225R	25
185275	BL1A25-1226R	26
185276	BL1A25-1227R	27
185277	BL1A25-1228R	28
185278	BL1A25-1229R	29
185279	BL1A25-1230R	30
185280	BL1A25-1231R	31
185281	BL1A25-1232R	32
185282	BL1A25-1233R	33
185283	BL1A25-1234R	34
185284	BL1A25-1235R	35
185285	BL1A25-1236R	36
185286	BL1A25-1237R	37
185287	BL1A25-1238R	38
185288	BL1A25-1239R	39
185289	BL1A25-1240R	40
