BL1225-11xxM2 series

single row SMD angled pin headers, type 2, pitch 2,54 mm

BL1225-11xxM2 series, single row SMD angled pin headers, type 2, pitch 2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54 mm

Drawing

BL1225	-	1	1	XX	M	2
1		2	3	4	5	6

1) series:
     BL1225: H=2,5mm
2) insulator:
     1: one
3) Number of rows:
     1: one
4) number of pins (1...40):
     XX
5) Type:
     M: vertical for surface mounting (SMD)
6) Option:
     2

Single row SMD angled pin headers, type 2 of this series are made in the form of a comb 1x40 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+137°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

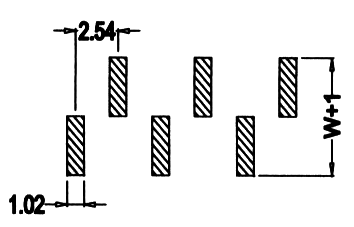

PCB layout

ID	Part.No.	number of contacts
97380	BL1225-1101M2	1
97381	BL1225-1102M2	2
97382	BL1225-1103M2	3
97383	BL1225-1104M2	4
97384	BL1225-1105M2	5
97385	BL1225-1106M2	6
97386	BL1225-1107M2	7
97387	BL1225-1108M2	8
97388	BL1225-1109M2	9
97389	BL1225-1110M2	10
97390	BL1225-1111M2	11
97391	BL1225-1112M2	12
97392	BL1225-1113M2	13
97393	BL1225-1114M2	14
97394	BL1225-1115M2	15
97395	BL1225-1116M2	16
97396	BL1225-1117M2	17
97397	BL1225-1118M2	18
97398	BL1225-1119M2	19
97399	BL1225-1120M2	20
97400	BL1225-1121M2	21
97401	BL1225-1122M2	22
97402	BL1225-1123M2	23
97403	BL1225-1124M2	24
97404	BL1225-1125M2	25
97405	BL1225-1126M2	26
97406	BL1225-1127M2	27
97407	BL1225-1128M2	28
97408	BL1225-1129M2	29
97409	BL1225-1130M2	30
97410	BL1225-1131M2	31
97411	BL1225-1132M2	32
97412	BL1225-1133M2	33
97413	BL1225-1134M2	34
97414	BL1225-1135M2	35
97415	BL1225-1136M2	36
97416	BL1225-1137M2	37
97417	BL1225-1138M2	38
97418	BL1225-1139M2	39
97419	BL1225-1140M2	40
