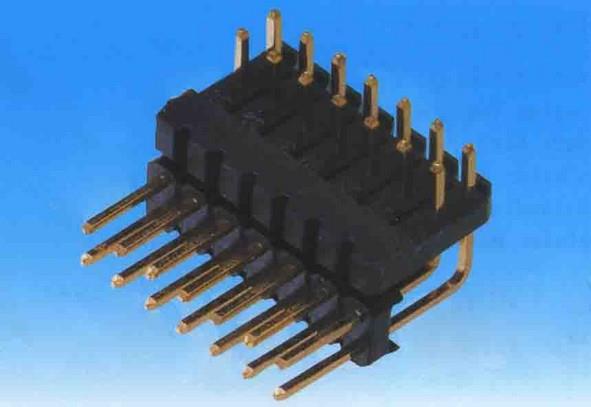

BL1225-22xxR series

double row angular pin headers with double insulator, pitch 2,54x2,54 mm

BL1225-22xxR series, double row angular pin headers with double insulator, pitch 2,54x2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54x2,54 mm

Drawing

BL1225	-	2	2	XX	R
1		2	3	4	5

1) series:
     BL1225
2) insulator:
     2: two
3) Number of rows:
     2: two
4) number of pins in a row:
     02 ... 40
5) Type:
     R: angular

Double row angular pin headers with double insulator of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+155°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
97980	BL1225-2201R	2x1
97981	BL1225-2202R	2x2
97982	BL1225-2203R	2x3
97983	BL1225-2204R	2x4
97984	BL1225-2205R	2x5
97985	BL1225-2206R	2x6
97986	BL1225-2207R	2x7
97987	BL1225-2208R	2x8
97988	BL1225-2209R	2x9
97989	BL1225-2210R	2x10
97990	BL1225-2211R	2x11
97991	BL1225-2212R	2x12
97992	BL1225-2213R	2x13
97993	BL1225-2214R	2x14
97994	BL1225-2215R	2x15
97995	BL1225-2216R	2x16
97996	BL1225-2217R	2x17
97997	BL1225-2218R	2x18
97998	BL1225-2219R	2x19
97999	BL1225-2220R	2x20
98000	BL1225-2221R	2x21
98001	BL1225-2222R	2x22
98002	BL1225-2223R	2x23
98003	BL1225-2224R	2x24
98004	BL1225-2225R	2x25
98005	BL1225-2226R	2x26
98006	BL1225-2227R	2x27
98007	BL1225-2228R	2x28
98008	BL1225-2229R	2x29
98009	BL1225-2230R	2x30
98010	BL1225-2231R	2x31
98011	BL1225-2232R	2x32
98012	BL1225-2233R	2x33
98013	BL1225-2234R	2x34
98014	BL1225-2235R	2x35
98015	BL1225-2236R	2x36
98016	BL1225-2237R	2x37
98017	BL1225-2238R	2x38
98018	BL1225-2239R	2x39
98019	BL1225-2240R	2x40

BL1225-22xxR series, double row angular pin headers with double insulator, pitch 2,54x2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54x2,54 mm

PCB layout
