BL1215-22xxM-PG series

double row SMD horizontal angle pin headers with double insulator with guides in the Board, pitch 2,54x2,54 mm

BL1215-22xxM-PG series, double row SMD horizontal angle pin headers with double insulator with guides in the Board, pitch 2,54x2,54 mm, Board-to-Board connectors, pin headers and sockets > pitch 2,54x2,54 mm

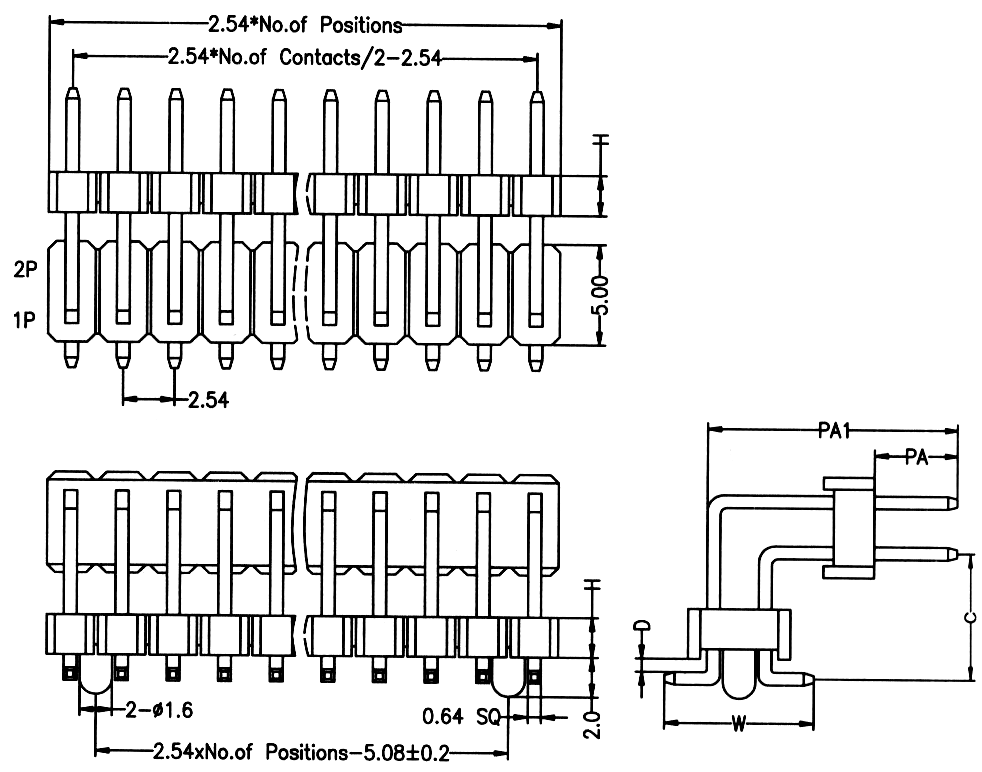

Drawing

BL1215	-	2	2	XX	M	-	PG
1		2	3	4	5		6

1) series:
     BL1215
2) insulator:
     2: two
3) Number of rows:
     2: two
4) number of pins in a row:
     01...40
5) Type:
     M: vertical for surface mounting (SMD)
6) Guides:
     PG: with guides

Double row SMD horizontal angle pin headers with double insulator with guides in the Board of this series are made in the form of a comb 2x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 2, 4, 6... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+125°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
98540	BL1215-2201M-PG	2x1
98541	BL1215-2202M-PG	2x2
98542	BL1215-2203M-PG	2x3
98543	BL1215-2204M-PG	2x4
98544	BL1215-2205M-PG	2x5
98545	BL1215-2206M-PG	2x6
98546	BL1215-2207M-PG	2x7
98547	BL1215-2208M-PG	2x8
98548	BL1215-2209M-PG	2x9
98549	BL1215-2210M-PG	2x10
98550	BL1215-2211M-PG	2x11
98551	BL1215-2212M-PG	2x12
98552	BL1215-2213M-PG	2x13
98553	BL1215-2214M-PG	2x14
98554	BL1215-2215M-PG	2x15
98555	BL1215-2216M-PG	2x16
98556	BL1215-2217M-PG	2x17
98557	BL1215-2218M-PG	2x18
98558	BL1215-2219M-PG	2x19
98559	BL1215-2220M-PG	2x20
98560	BL1215-2221M-PG	2x21
98561	BL1215-2222M-PG	2x22
98562	BL1215-2223M-PG	2x23
98563	BL1215-2224M-PG	2x24
98564	BL1215-2225M-PG	2x25
98565	BL1215-2226M-PG	2x26
98566	BL1215-2227M-PG	2x27
98567	BL1215-2228M-PG	2x28
98568	BL1215-2229M-PG	2x29
98569	BL1215-2230M-PG	2x30
98570	BL1215-2231M-PG	2x31
98571	BL1215-2232M-PG	2x32
98572	BL1215-2233M-PG	2x33
98573	BL1215-2234M-PG	2x34
98574	BL1215-2235M-PG	2x35
98575	BL1215-2236M-PG	2x36
98576	BL1215-2237M-PG	2x37
98577	BL1215-2238M-PG	2x38
98578	BL1215-2239M-PG	2x39
98579	BL1215-2240M-PG	2x40

PCB layout
