| Connectors >> Board-to-Board connectors, pin headers and sockets >> pitch 2,54x2,54 mm |
BL1225-13xxS series |
straight three-row open pin header on the board for mounting holes, pitch 2,54x2,54 mm
|
Drawing
|
| BL1225 |
- |
1 |
3 |
XX |
- |
S |
| 1 |
|
2 |
3 |
4 |
|
5 |
|
|
1) series:
BL1225
2) insulator:
1: one
3) Number of rows:
3: три
4) number of pins in a row (3x40):
01 ... 40
5) Type:
S: straight
|
|
Straight three-row open pin header on the board for mounting holes of this series are made in the form of a comb 3x40 pins. Then they can be cut on a special device on factory at the request of the customer for any even number of contacts: 3, 6, 9... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine. |
Electric characteristic:
Maximum current: 2 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 500 V AC for 1 min.
Operating temperature: -40...+149°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

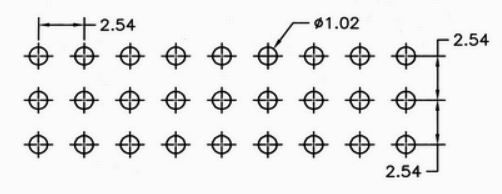

PCB layout
 |
| 182892 |
BL1225-1301S |
1 |
| 182893 |
BL1225-1302S |
2 |
| 182894 |
BL1225-1303S |
3 |
| 182895 |
BL1225-1304S |
4 |
| 182896 |
BL1225-1305S |
5 |
| 182897 |
BL1225-1306S |
6 |
| 182898 |
BL1225-1307S |
7 |
| 182899 |
BL1225-1308S |
8 |
| 182900 |
BL1225-1309S |
9 |
| 182901 |
BL1225-1310S |
10 |
| 182902 |
BL1225-1311S |
11 |
| 182903 |
BL1225-1312S |
12 |
| 182904 |
BL1225-1313S |
13 |
| 182905 |
BL1225-1314S |
14 |
| 182906 |
BL1225-1315S |
15 |
| 182907 |
BL1225-1316S |
16 |
| 182908 |
BL1225-1317S |
17 |
| 182909 |
BL1225-1318S |
18 |
| 182910 |
BL1225-1319S |
19 |
| 183298 |
BL1225-1320S |
20 |
| 183299 |
BL1225-1321S |
21 |
| 183302 |
BL1225-1322S |
22 |
| 183303 |
BL1225-1323S |
23 |
| 183304 |
BL1225-1324S |
24 |
| 183305 |
BL1225-1325S |
25 |
| 183306 |
BL1225-1326S |
26 |
| 183307 |
BL1225-1327S |
27 |
| 183308 |
BL1225-1328S |
28 |
| 183309 |
BL1225-1329S |
29 |
| 183310 |
BL1225-1330S |
30 |
| 183311 |
BL1225-1331S |
31 |
| 183312 |
BL1225-1332S |
32 |
| 183313 |
BL1225-1333S |
33 |
| 183314 |
BL1225-1334S |
34 |
| 183315 |
BL1225-1335S |
35 |
| 183316 |
BL1225-1336S |
36 |
| 183317 |
BL1225-1337S |
37 |
| 183917 |
BL1225-1338S |
38 |
| 184330 |
BL1225-1339S |
39 |
| 184331 |
BL1225-1340S |
40 |
|
PCB layout
|
|
|
