41815R series |
angular sockets to PCB, pitch 3,96 mm
|

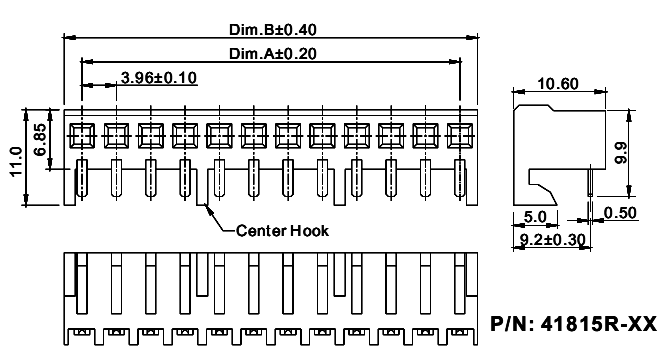

Drawing
|
|
|
|
1) series:
41815
2) Appear:
S: straight socket
R: angular soñket
BE: straight socket with reverse input
3) number of pins (2...15):
01: 1 pin (supplemented by zero in front if less than 10 pins, i.e.: 01, 02...09)
15: 15 pins
|
|
Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts. |
Electric characteristic:
Maximum current: 5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 1500 V AC for 1 min.
Operating temperature: -25...+85°C
Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating
PCB layout
 |
| 60107 |
41815R-02 (Molex 0009481024, FPHRN-102TTW004) |
2 |
3,96 |
8,06 |
| 60108 |
41815R-03 (Molex 0009481034, FPHRN-103TTW004) |
3 |
7,92 |
12,02 |
| 60109 |
41815R-04 (Molex 0009481044, FPHRN-104TTW004) |
4 |
11,88 |
15,98 |
| 25437 |
41815R-05 (Molex 0009481054, FPHRN-105TTW004) |
5 |
15,84 |
19,94 |
| 17948 |
41815R-06 (Molex 0009481064, FPHRN-106TTW004) |
6 |
19,80 |
23,90 |
| 60110 |
41815R-07 (Molex 0009481074, FPHRN-107TTW004) |
7 |
23,76 |
27,86 |
| 60111 |
41815R-08 (Molex 0009481084, FPHRN-108TTW004) |
8 |
27,72 |
31,82 |
| 60112 |
41815R-09 (Molex 0009481094, FPHRN-109TTW004) |
9 |
31,68 |
35,78 |
| 60113 |
41815R-10 (Molex 0009481104, FPHRN-110TTW004) |
10 |
35,64 |
39,74 |
| 60114 |
41815R-11 (Molex 0009481114, FPHRN-111TTW004) |
11 |
39,60 |
43,70 |
| 60115 |
41815R-12 (Molex 0009481124, FPHRN-112TTW004) |
12 |
43,56 |
47,66 |
| 60116 |
41815R-13 (Molex 0009481134, FPHRN-113TTW004) |
13 |
47,52 |
51,62 |
| 60117 |
41815R-14 (Molex 0009481144, FPHRN-114TTW004) |
14 |
51,48 |
55,58 |
| 60118 |
41815R-15 (Molex 0009481154, FPHRN-115TTW004) |
15 |
55,44 |
59,54 |
|
PCB layout
|
|
