BL1932-11xxM-02 series

pin headers SMD single-row straight type 2, pitch 3,96 mm

BL1932-11xxM-02 series, pin headers SMD single-row straight type 2, pitch 3,96 mm, Board-to-Board connectors > pitch 3,96 mm

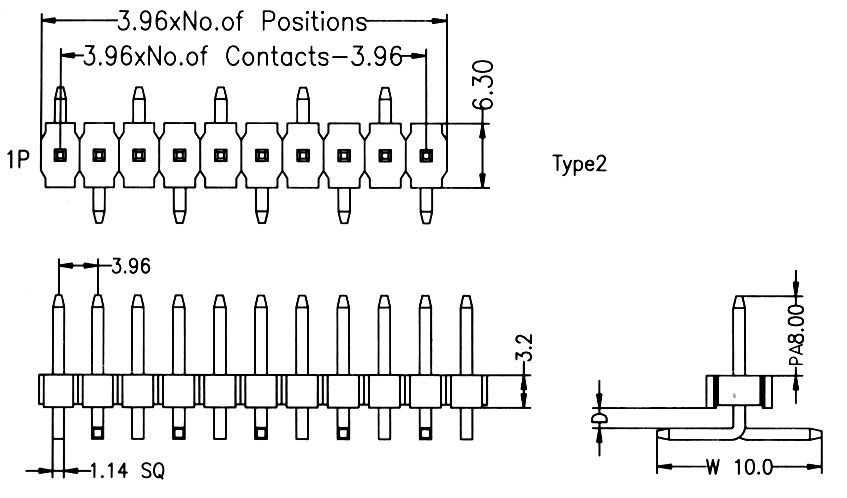

Drawing

1932-11	20	M	-	02
1	2	3		4

1) series:
     1932-11
2) number of pins (1...20):
     01: 1 pin (supplemented by zero in front if less than 10 pins, i.e.: 01, 02...09)
     20: 20 pins
3) Appearance
     R: angular
     S: straight
     M: for surface mounting
4) pin allocation:
     02

Pin headers SMD single-row straight type 2 of this series are made in the form of a comb 1x20 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 7.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 1500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

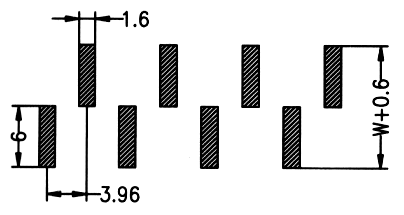

PCB layout

ID	Part.No.	number of contacts
213129	BL1932-1101M-02	1
213130	BL1932-1102M-02	2
213131	BL1932-1103M-02	3
213132	BL1932-1104M-02	4
213133	BL1932-1105M-02	5
213134	BL1932-1106M-02	6
213135	BL1932-1107M-02	7
213136	BL1932-1108M-02	8
213137	BL1932-1109M-02	9
213138	BL1932-1110M-02	10
213139	BL1932-1111M-02	11
213140	BL1932-1112M-02	12
213141	BL1932-1113M-02	13
213142	BL1932-1114M-02	14
213143	BL1932-1115M-02	15
213144	BL1932-1116M-02	16
213145	BL1932-1117M-02	17
213146	BL1932-1118M-02	18
213147	BL1932-1119M-02	19
213148	BL1932-1120M-02	20
