BL1932-11xxS series

pin headers single-row straight, pitch 3,96 mm

BL1932-11xxS series, pin headers single-row straight, pitch 3,96 mm, Board-to-Board connectors > pitch 3,96 mm

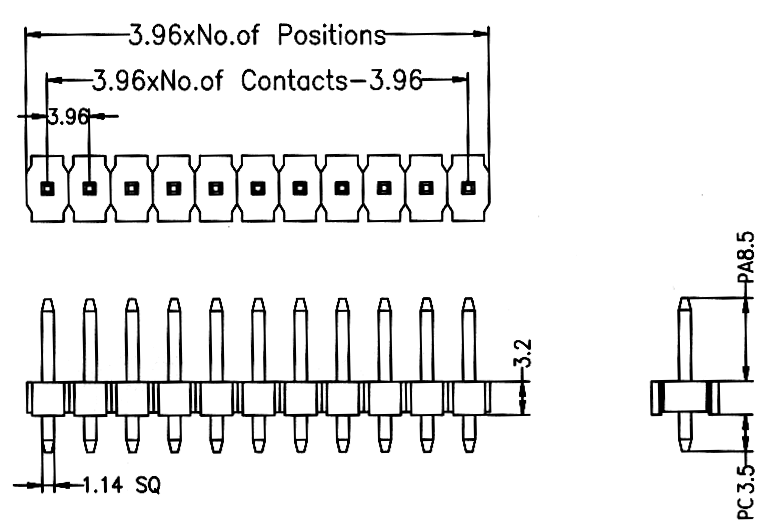

Drawing

1932-11	20	S
1	2	3

1) series:
     1932-11
2) number of pins (1...20):
     01: 1 pin (supplemented by zero in front if less than 10 pins, i.e.: 01, 02...09)
     20: 20 pins
3) Appearance
     R: angular
     S: straight
     M: for surface mounting

Pin headers single-row straight of this series are made in the form of a comb 1x20 pins. Then they can be cut on a special device on factory at the request of the customer for any number of contacts: 1, 2, 3... etc. The cost of cutting only slightly increases the price of a single contact, but the cut is almost perfect, without chipping at the ends, and the customer does not spend time on the work, which is easily done by the machine.

Electric characteristic:
Maximum current: 7.5 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 1500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

PCB layout

ID	Part.No.	number of contacts
213169	BL1932-1101S	1
213170	BL1932-1102S	2
213171	BL1932-1103S	3
213172	BL1932-1104S	4
213173	BL1932-1105S	5
213174	BL1932-1106S	6
213175	BL1932-1107S	7
213176	BL1932-1108S	8
213177	BL1932-1109S	9
213178	BL1932-1110S	10
213179	BL1932-1111S	11
213180	BL1932-1112S	12
213181	BL1932-1113S	13
213182	BL1932-1114S	14
213183	BL1932-1115S	15
213184	BL1932-1116S	16
213185	BL1932-1117S	17
213186	BL1932-1118S	18
213187	BL1932-1119S	19
213188	BL1932-1120S	20
