BL2189-01xxM series

single-row straight SMD sockets, pitch 5,08 mm

BL2189-01xxM series, single-row straight SMD sockets, pitch 5,08 mm, Board-to-Board connectors > pitch 5,08 mm

Drawing

2189-01	20	M
1	2	3

1) series:
     2189-01
2) number of pins (1...20):
     01: 1 pin (supplemented by zero in front if less than 10 pins, i.e..:: 01, 02...09)
     20: 20 pins
3) Type:
     S: straight
     M: for surface mounting

Sockets of this series are manufactured at the factory by casting.
Unlike the pins, they are not cut, and are made to the required number of contacts.

Electric characteristic:
Maximum current: 7 A AC/DC
Maximum voltage: 250 V AC/DC
Electric characteristic: 20 mOhm (max.)
Insulation resistance: 1000 MOhm (min.)
Dielectric strength: 1500 V AC for 1 min.
Operating temperature: -40...+105°C

Insulator material: high temperature plastic (UL94V-0)
Contact material: phosphor bronze
Standard contact coverage: gold plating

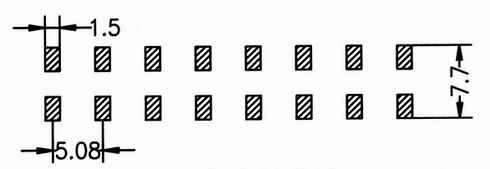

PCB layout

ID	Part.No.	number of contacts
212034	BL2189-0101M	1
212033	BL2189-0102M	2
212032	BL2189-0103M	3
212031	BL2189-0104M	4
212030	BL2189-0105M	5
212029	BL2189-0106M	6
212028	BL2189-0107M	7
212027	BL2189-0108M	8
212026	BL2189-0109M	9
212025	BL2189-0110M	10
212024	BL2189-0111M	11
212023	BL2189-0112M	12
212022	BL2189-0113M	13
212021	BL2189-0114M	14
212020	BL2189-0115M	15
212019	BL2189-0116M	16
212018	BL2189-0117M	17
212017	BL2189-0118M	18
212016	BL2189-0119M	19
212015	BL2189-0120M	20

BL2189-01xxM series, single-row straight SMD sockets, pitch 5,08 mm, Board-to-Board connectors > pitch 5,08 mm

PCB layout
