(R13) Rocker Switch

- 1 - 2 - 3 - 4 -

Model No.	Function	Rating	Terminal
R13-112xH	R13-112AH: 2P SPST off-on R13-112BH: 3P SPST (illuminated) off-on R13-112CH: 3P SPDT on-on R13-112DH: 3P SPDT on-off-on	16A 125V AC 10A 250V AC	.187" SQ
R13-112xS	R13-112AS: 2P SPST off-on R13-112BS: 3P SPST (neon) off-on R13-112B2S: 3P SPST (neon) off-on R13-112CS: 3P SPDT on-on R13-112DS: 3P SPDT on-off-on R13-112LS: 4P SPST (LED) off-on (independent circuit)	10A 125V AC 6A 250V AC	.187" SQ

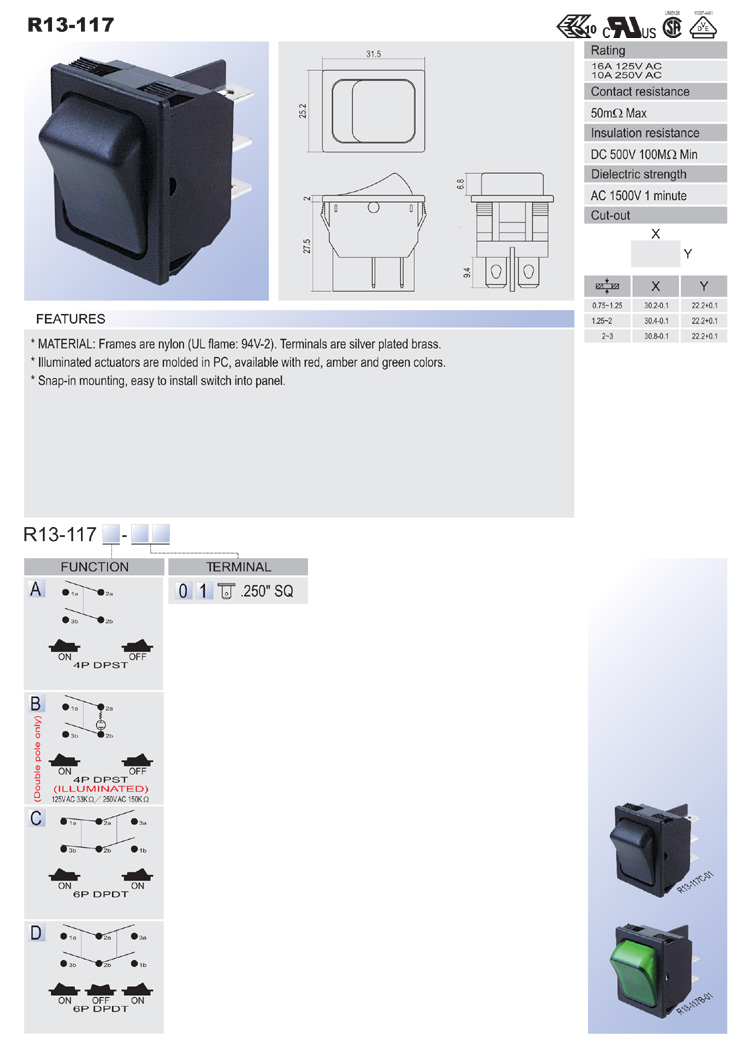

R13-117	R13-117A: 4P DPST off-on R13-117B: 4P DPST (с подсветкой) off-on R13-117C: 6P DPDT on-on R13-117D: 6P DPDT on-off-on	16A 125V AC 10A 250V AC	.250" SQ

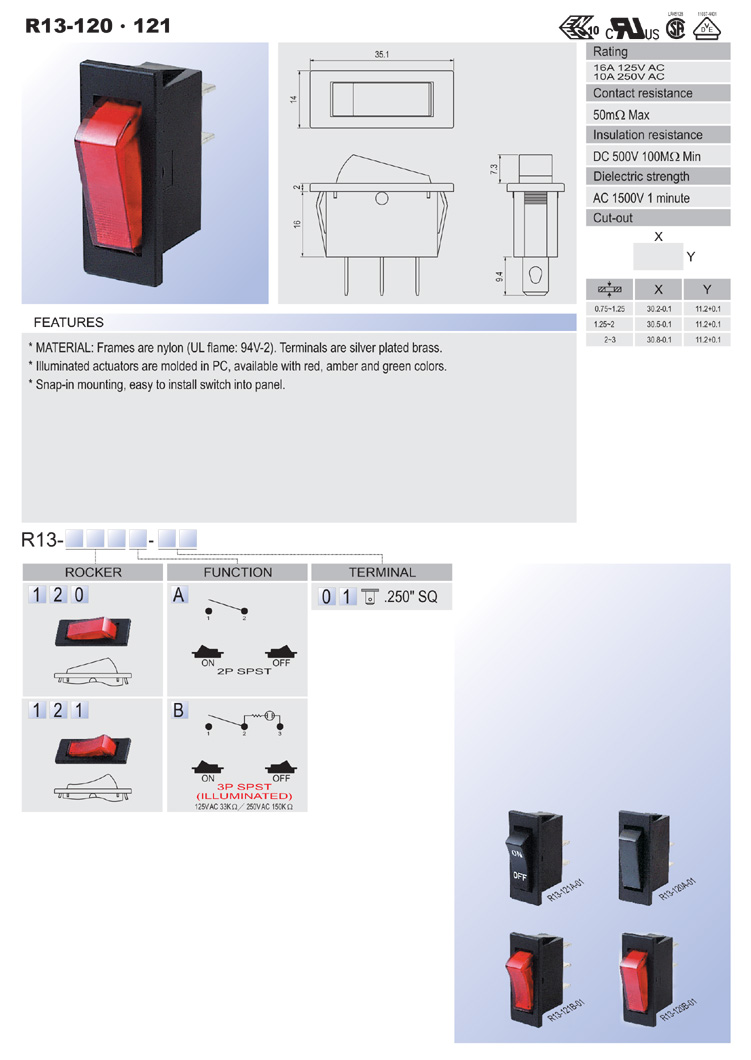

R13-120	R13-120A: 2P SPST off-on R13-120B: 3P SPST off-on (illuminated)	16A 125V AC 10A 250V AC	.250" SQ
R13-121	R13-121A: 2P SPST off-on R13-121B: 3P SPST off-on (illuminated)	16A 125V AC 10A 250V AC	.250" SQ
R13-126	R13-126A: 2P SPST off-on R13-126C: 3P SPDT on-on	10A 125V AC / 6A 250V AC 6A 125V AC / 3A 250V AC	.187" SQ

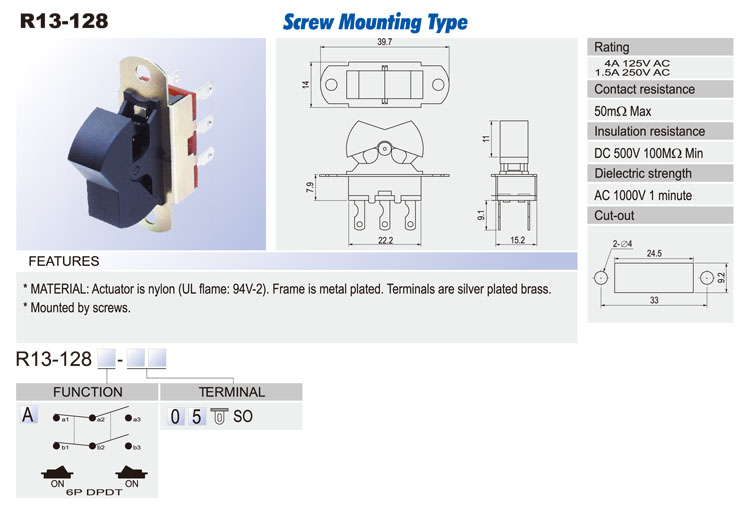

R13-128	R13-128A: 6P DPDT on-on	4A 125V AC 1.5A 250V AC	SO
R13-129	R13-129A: 2P SPST off-on R13-129B: 6P DPDT on-on R13-129C: 3P SPDT on-on R13-129D: 3P SPDT on-off-on R13-129E: 6P DPDT on-off-on R13-129F: 4P DPST off-on R13-129G: 3P SPDT (on)-off-(on) R13-129H: 3P SPDT (on)-off-on R13-129K: 6P DPDT (on)-off-(on) R13-129M: 6P DPDT (on)-off-on	15A 125V AC 10A 250V AC	.250" SQ SO SC 3
R13-130	R13-130A: 2P SPST on-off R13-130B: 6P DPDT on-on R13-130C: 3P SPDT on-on	10A 125V AC 6A 250V AC	SO
R13-135	R13-135A/A2/AP: 2P SPST off-on R13-135B/BP: 3P SPST (neon) off-on R13-135B2: 3P SPST (neon) off-on (with lens) R13-135B9: 3P SPST (LED) off-on (w/o lens) R13-135C/CP: 3P SPDT on-on R13-135D/DP: 3P SPDT on-off-on R13-135E: 2P SPST (off)-on R13-135F: 2P SPST off-(on) R13-135G: 3P SPDT (on)-on R13-135H: 3P SPDT (on)-off-on R13-135I: 3P SPDT (on)-off-(on) R13-135L: 4P SPST (LED) off-on (independent circuit) R13-135LP: 4P SPST (LED) off-on (independent circuit) R13-135LF: 4P SPST (LED) off-(on) (independent circuit)	16A 125V AC 10A 250V AC	0.187" SQ PC (for A/C/D/E/ F/G/H/I) SO (for A/C/D/E/ F/G/H/I/L)
R13-136	R13-136A: 2P SPST on-off R13-136B: 6P DPDT on-on R13-136C: 3P SPDT on-on	10A 125V AC 6A 250V AC	SO

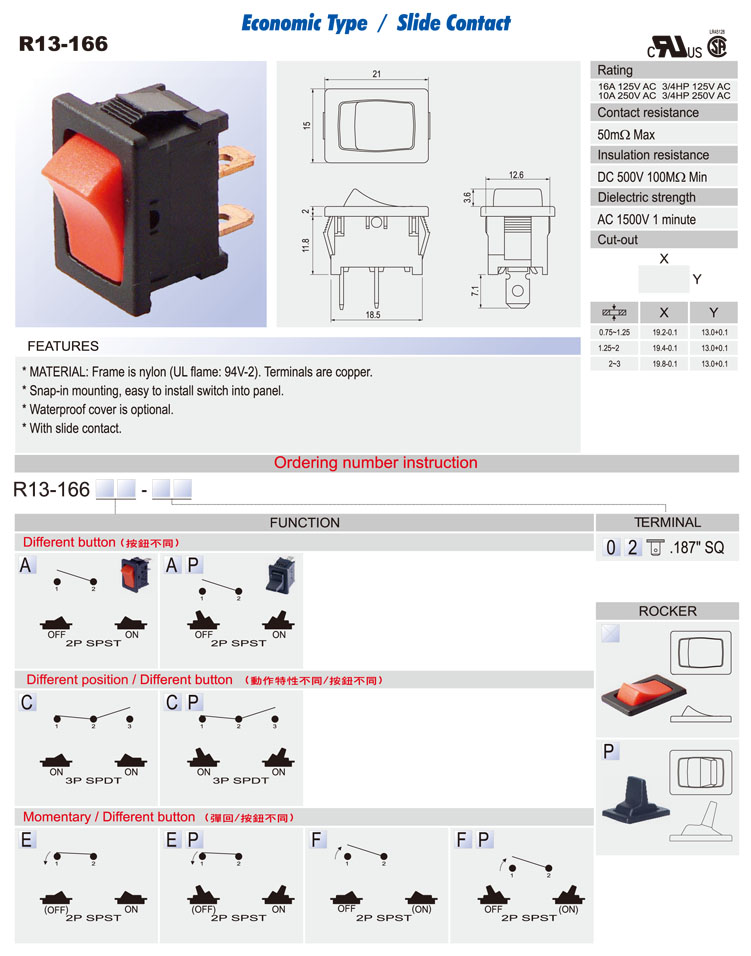

R13-166	R13-166A/AP: 2P SPST off-on R13-166C/CP: 3P SPDT on-on R13-166E/EP: 2P SPST (off)-on R13-166F/FP: 2P SPST off-(on)	16A 125V AC 3/4HP 125V AC 10A 250V AC 3/4HP 250V AC	.250" SQ

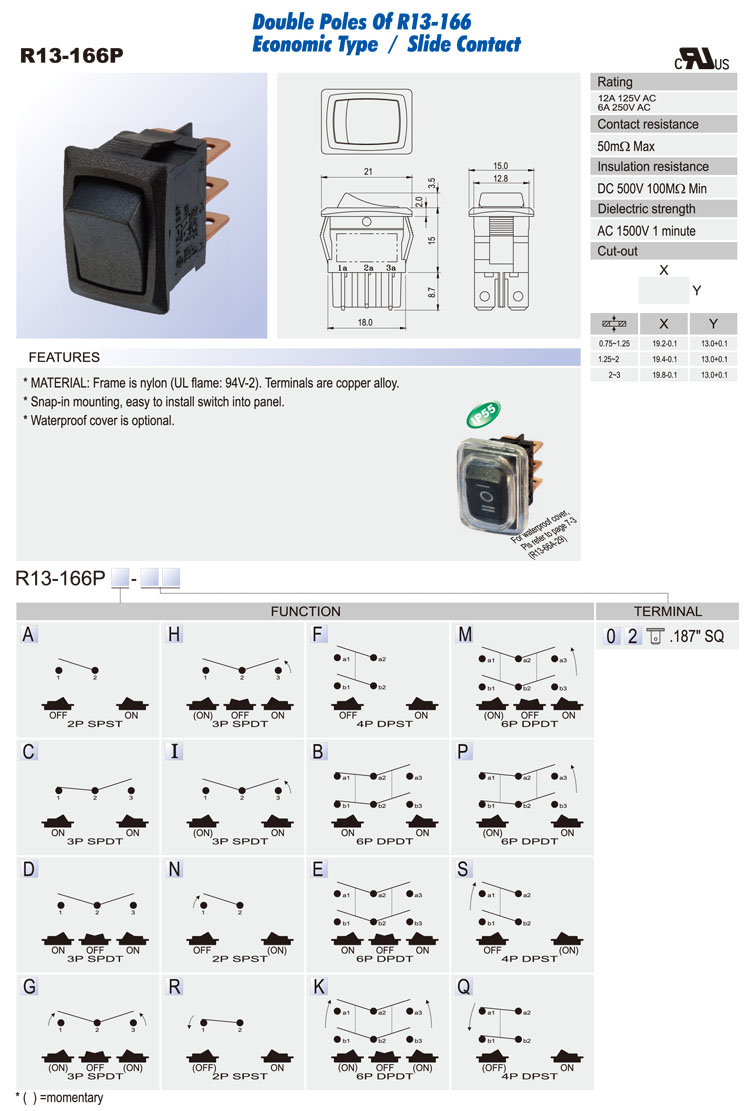

R13-166P	R13-166PA: 2P SPST off-on R13-166PB: 6P DPDT on-on R13-166PC: 3P SPDT on-on R13-166PD: 3P SPDT on-off-on R13-166PE: 6P DPDT on-off-on R13-166PF: 4P DPST off-on R13-166PG: 3P SPDT (on)-off-(on) R13-166PH: 3P SPDT (on)-off-on R13-166PI: 3P SPDT (on)-on R13-166PK: 6P DPDT (on)-off-(on) R13-166PM: 6P DPDT (on)-off-on R13-166PN: 2P SPST off-(on) R13-166PP: 6P DPDT (on)-on R13-166PQ: 4P DPST (off)-on R13-166PR: 2P SPST (off)-on R13-166PS: 4P DPST off-(on)	12A 125V AC 6A 250V AC	.187" SQ
R13-203	R13-203A: 2P SPST off-on R13-203AL: 3P SPST (LED) off(green)-on(red) R13-203A8: 2P SPST off-on (waterproof) R13-203B: 3P SPST (neon) off-on R13-203B8: 3P SPST (neon) off-on (waterproof) R13-203C: 3P SPDT on-on R13-203СL: 4P SPDT (LED) on(green)-on(red) R13-203C: 3P SPDT on-on (waterproof)	16A 125V AC 10A 250V AC	.250" SQ
R13-205	R13-205A/A2/A3: 2P SPST off-on R13-205B/B2: 3P SPST (neon) off-on R13-205BF/B2F: 3P SPST (neon) off-(on) R13-205C3: 3P SPDT on-on R13-205D3: 3P SPDT on-off-on R13-205F3: 2P SPST off-(on) R13-205I3: 3P SPDT (on)-off-(on) R13-205L: 4P SPST (LED) off-on R13-205LF: 4P SPST (LED) off-(on)	20A 125V AC 1/3HP 125V AC 16A 2S0V AC 1/2HP 250V AC	.250" SQ SO

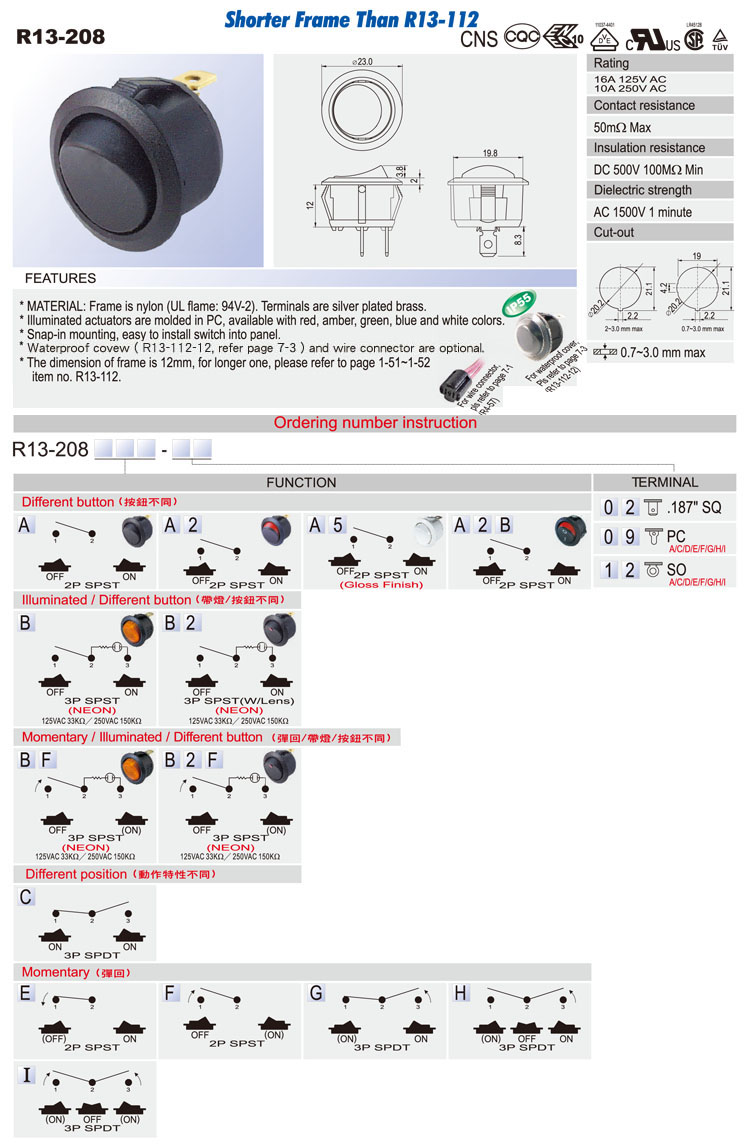

R13-208	R13-208A/A2/A2B: 2P SPST off-on R13-208A5: 2P SPST off-on (gloss finish) R13-208B/B2: 3P SPST (neon) off-on R13-208BF/B2F: 3P SPST (neon) off-(on) R13-208C: 3P SPDT on-on R13-208E: 2P SPST (off)-on R13-208F: 2P SPST off-(on) R13-208G: 3P SPDT (on)-on R13-208H: 3P SPDT (on)-off-on R13-208I: 3P SPDT (on)-off-(on)	16A 125V AC 10A 250V AC	0.187" SQ PC SO
R13-211	R13-211A: 2P SPST off-on R13-211C: 3P SPDT on-on R13-211D: 3P SPDT on-off-on R13-211F: 2P SPST off-(on) R13-211H: 3P SPDT (on)-off-on R13-211I: 3P SPDT (on)-off-(on)	10A 125V AC 6A 250V AC	.187" SQ
R13-213	R13-213A: 2P SPST off-on R13-213B: 6P DPDT on-on R13-213C: 3P SPDT on-on R13-213F: 4P DPST off-on	6A 125V AC 3A 250V AC	.110" SQ

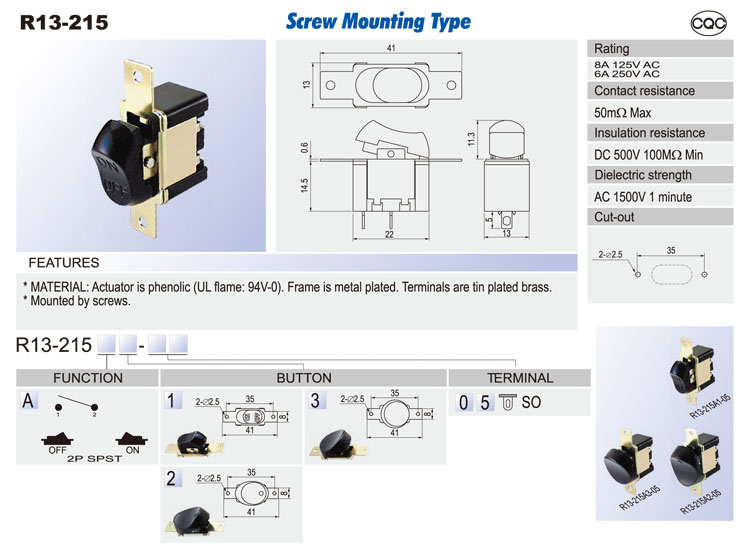

R13-215	R13-215A: 2P SPST off-on	8A 125V AC 6A 250V AC	SO

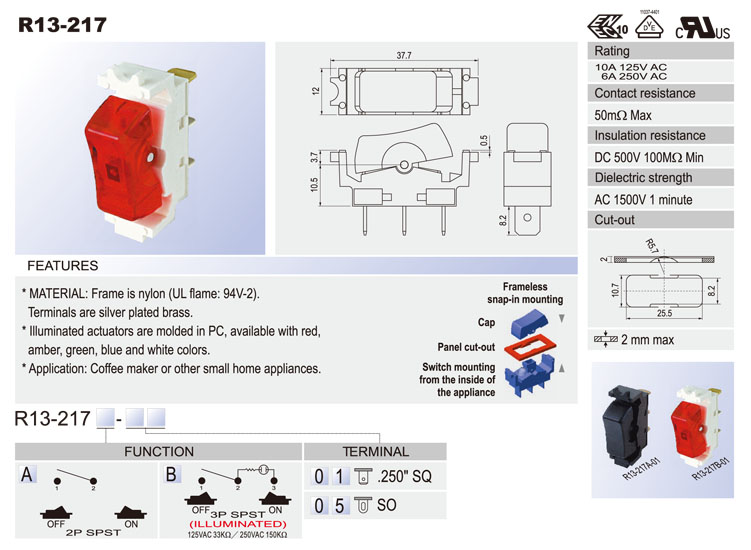

R13-217	R13-217A: 2P SPST off-on R13-217B: 3P SPST (illuminated) off-on	10A 125V AC 6A 250V AC	0.250" SQ SO

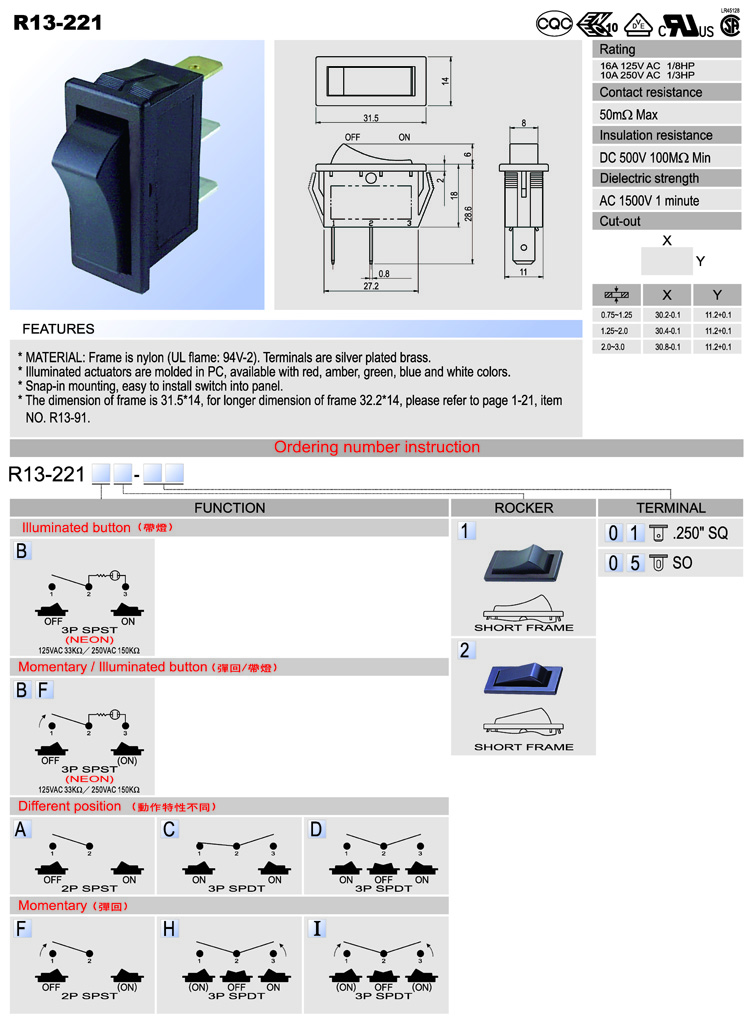

R13-221	R13-221A: 2P SPST off-on R13-221B: 3P SPST (neon) off-on R13-221BF: 3P SPST (neon) off-(on) R13-221C: 3P SPDT on-on R13-221D: 3P SPDT on-off-on R13-221F: 2P SPST off-(on) R13-221H: 3P SPDT (on)-off-on R13-221I: 3P SPDT (on)-off-(on)	16A 125V AC 1/8HP 10A 250V AC 1/3HP	.250" SQ SO
