(R13) Rocker Switch

- 1 - 2 - 3 - 4 -

Model No.	Function	Rating	Terminal
R13-271	R13-271A: 2P SPST off-on R13-271B: 6P DPDT on-on R13-271C: 3P SPDT on-on R13-271D: 3P SPDT on-off-on R13-271E: 6P DPDT on-off-on R13-271F: 4P DPST on-off R13-271G: 3P SPDT (on)-off-(on) R13-271H: 3P SPDT on-off-(on) R13-271I: 3P SPDT on-(on) R13-271K: 6P DPDT (on)-off-(on) R13-271M: 6P DPDT on-off-(on) R13-271N: 2P SPST (on)-off R13-271P: 6P DPDT on-(on) R13-271Q: 4P DPST on-(off) R13-271R: 2P SPST on-(off) R13-271S: 4P DPST (on)-off	20A 125V AC 10A 250V AC 3/4 HP 125-250V AC	.250" SQ
R13-278	R13-278B: 3P SPST (neon) off-on R13-278BF: 3P SPST (neon) off-(on) R13-278A: 2P SPST off-on R13-278C: 3P SPDT on-on R13-278D: 3P SPDT on-off-on R13-278E: 2P SPST (off)-on R13-278F: 2P SPST off-(on) R13-278G: 3P SPDT (on)-on R13-278H: 3P SPDT (on)-off-on R13-278I: 3P SPDT (on)-off-(on) R13-278A8: 2P SPST off-on (waterproof) R13-278B8: 3P SPST (neon) off-on (waterproof) R13-278B8F: 3P SPST (neon) off-(on) (waterproof) R13-278C8: 3P SPDT on-on (waterproof) R13-278F8: 2P SPST off-(on) (waterproof)	16A 125V AC 10A 250V AC 1/2HP 125V-250V AC	.187" SQ PC PC ANGLE SO
R13-282	R13-282A: 2P SPST off-on R13-282B: 6P DPDT on-on R13-282C: 3P SPDT on-on R13-282D: 3P SPDT on-off-on R13-282E: 6P DPDT on-off-on R13-282F: 4P DPST on-off R13-282G: 3P SPDT (on)-off-(on) R13-282H: 3P SPDT (on)-off-on R13-282I: 3P SPDT (on)-on R13-282K: 6P DPDT (on)-off-(on) R13-282M: 6P DPDT (on)-off-on R13-282N: 2P SPST (on)-off R13-282P: 6P DPDT (on)-on R13-282Q: 4P DPST on-(off) R13-282R: 2P SPST on-(off) R13-282S: 4P DPST (on)-off	16(6)A 125V-250V AC	.250" SQ

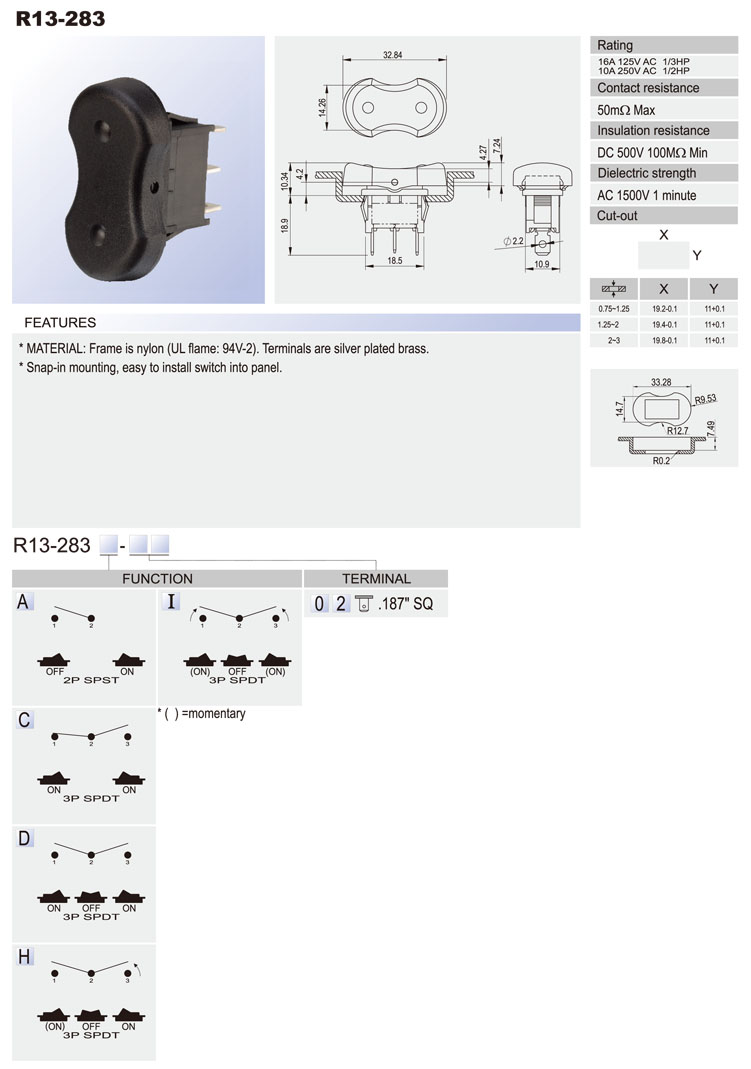

R13-283	R13-283A: 2P SPST off-on R13-283C: 3P SPDT on-on R13-283D: 3P SPDT on-off-on R13-283H: 3P SPDT (on)-off-on R13-283I: 3P SPDT (on)-off-on	16A 125V AC 1/3HP 10A 250V AC 1/2HP	.187" SQ
R13-284	R13-284A: 2P SPST off-on R13-284C: 3P SPDT on-on R13-284D: 3P SPDT on-off-on	12A 125V AC 1/3HP 6A 250V AC 1/2HP	.187" SQ
R13-285	R13-285AL: 4P DPST (LED) off-on R13-285СL: 6P DPDT (LED) on-on R13-285A8: 4P DPST off-on (waterproof) R13-285A8L: 4P DPST (LED) off-on (waterproof) R13-285С8: 6P DPDT on-on (waterproof) R13-285С8L: 6P DPDT (LED) on-on (waterproof)	10(8)A 250V AC 10A 60V DC	.250" SQ
R13-290	R13-290AL: 4P SPST (LED) off-on R13-290СL: 5P SPDT (LED) on-on	6A 125V AC 3A 250V AC	SO

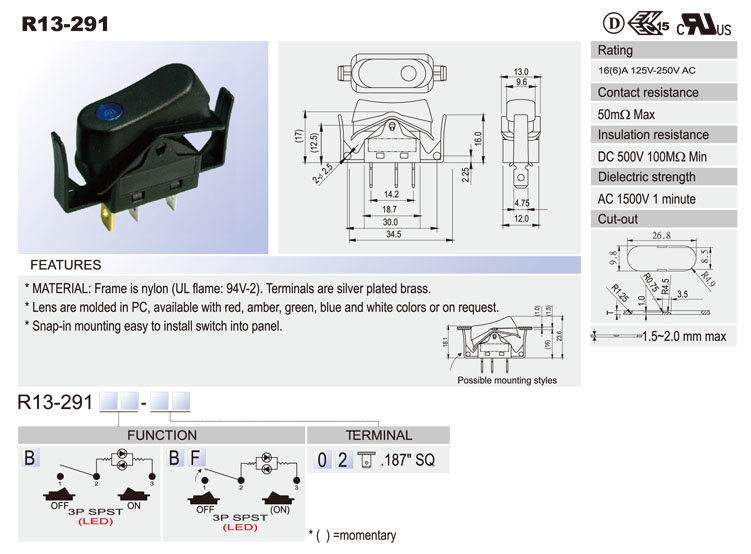

R13-291	R13-291B: 3P SPST (LED) off-on R13-291BF: 3P SPST (LED) off-(on)	16(6)A 125V-250V AC	.187" SQ
R13-292	R13-292A: 2P SPST off-on R13-292B: 6P DPDT on-on R13-292C: 3P SPDT on-on R13-292D: 3P SPDT on-off-on R13-292E: 6P DPDT on-off-on R13-292F: 4P DPST on-off R13-292G: 3P SPDT (on)-off-(on) R13-292H: 3P SPDT on-off-(on) R13-292I: 3P SPDT on-(on) R13-292K: 6P DPDT (on)-off-(on) R13-292M: 6P DPDT on-off-(on) R13-292N: 2P SPST (on)-off R13-292P: 6P DPDT on-(on) R13-292Q: 4P DPST on-(off) R13-292R: 2P SPST on-(off) R13-292S: 4P DPST (on)-off	20A 125V AC 10A 250V AC 3/4HP 125-250V AC	.250" SQ
R13-293	R13-293A: 2P SPST off-on R13-293B: 3P SPST (illuminated) off-on R13-293C: 3P SPDT on-on	20A 125V AC 16A 250V AC	.250" SQ
R13-294	R13-294A: 2P SPST off-on R13-294B: 6P DPDT on-on R13-294C: 3P SPDT on-on R13-294D: 3P SPDT on-off-on R13-294E: 6P DPDT on-off-on R13-294F: 4P DPST on-off R13-294G: 3P SPDT (on)-off-(on) R13-294H: 3P SPDT on-off-(on) R13-294I: 3P SPDT on-(on) R13-294K: 6P DPDT (on)-off-(on) R13-294M: 6P DPDT on-off-(on) R13-294N: 2P SPST (on)-off R13-294P: 6P DPDT on-(on) R13-294Q: 4P DPST on-(off) R13-294R: 2P SPST on-(off) R13-294S: 4P DPST (on)-off	20A 125V AC 10A 250V AG 16(4)A 250V AC	.250" SQ
R13-296	R13-296A: 2P SPST off-on	3A 125V AC 3A 250V AC	SO
R13-297	R13-297A: 2P SPST off-on R13-297C: 3P SPDT on-on	3A 125V AC 3A 250V AC	SO
R13-300	R13-300B: 3P SPST (neon) off-on	10A 125V/250V AC	SO

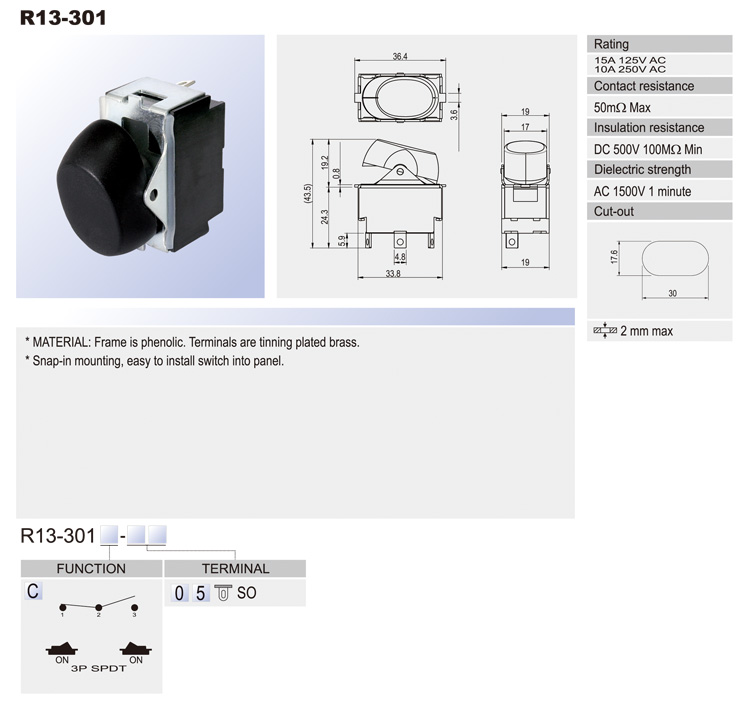

R13-301	R13-301C: 3P SPDT on-on	15A 125V AC 10A 250V AC	SO
R13-1112	R13-1112A: 2P SPST off-on R13-1112C: 3P SPDT on-on R13-1112F: 2P SPST off-(on)	16A 125V AC 10A 250V AC 3/4HP 125-250V AC	.187" SQ

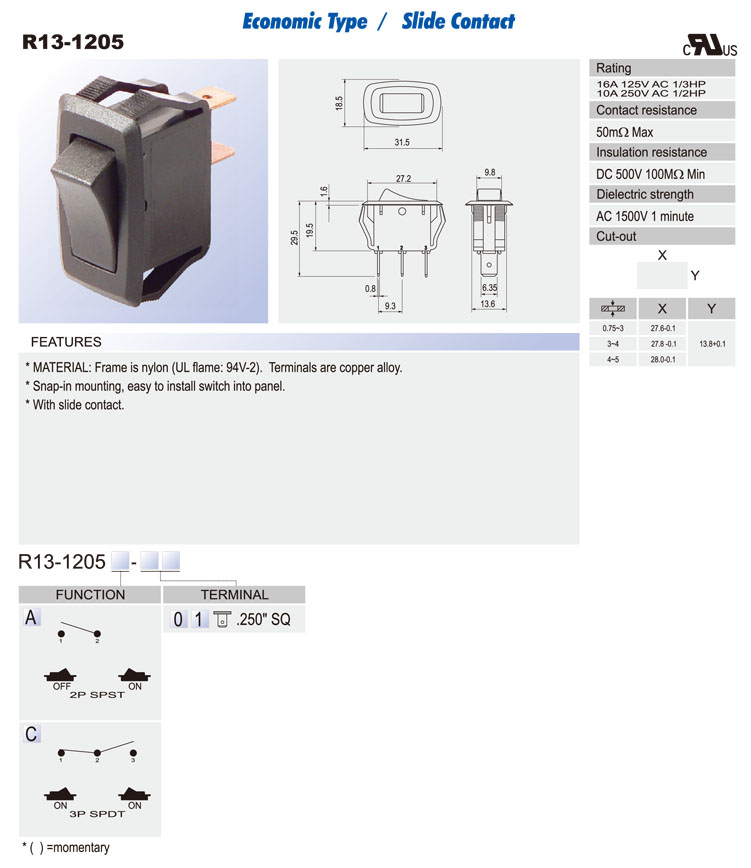

R13-1205	R13-1205A: 2P SPST off-on R13-1205C: 3P SPDT on-on	16A 125V AC 1/3HP 10A 250V AC 1/2HP	.250" SQ
R13-1208	R13-1208A: 2P SPST off-on R13-1208C: 3P SPDT on-on R13-1208F: 2P SPST off-(on)	16A 125V AC 10A 250V AC 3/4HP 125-250V AC	.187" SQ
R13-1211	R13-1211A: 2P SPST off-on R13-1211C: 3P SPDT on-on	16A 125V AC 10A 250V AC 3/4HP 125-250V AC	.187" SQ

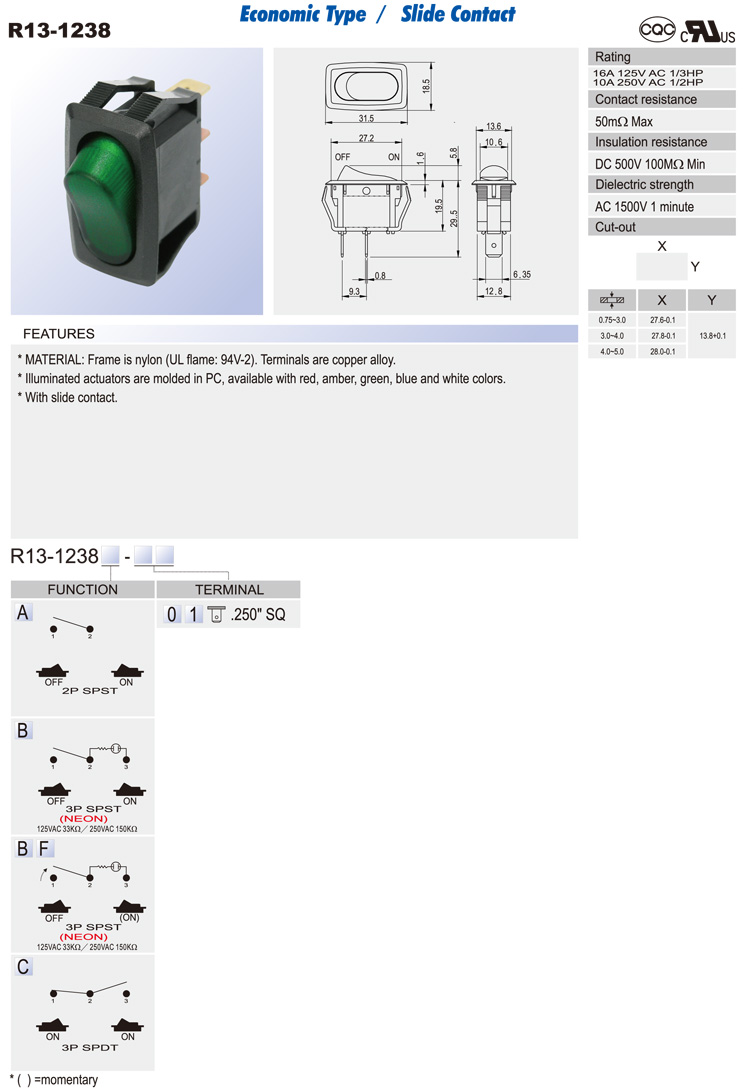

R13-1238	R13-1238A: 2P SPST off-on R13-1238B: 3P SPST (neon) off-on R13-1238BF: 3P SPST (neon) off-(on) R13-1238C: 3P SPDT on-on	16A 125V AC 1/3HP 10A 250V AC 1/2HP	.250" SQ
R13-1278	R13-1278A: 2P SPST off-on R13-1278B: 3P SPST (illuminated) on-off R13-1278BF: 3P SPST (illuminated) (on)-off R13-1278C: 3P SPDT on-on R13-1278F: 2P SPST (on)-off	16A 125V AC 10A 250V AC 1/2HP 125-250V AC	.187" SQ
