(R13) Rocker Switch

- 1 - 2 - 3 - 4 -

Model No.	Function	Rating	Terminal
R13-222	R13-222A: 2P SPST off-on R13-222B: 3P SPST (illuminated) off-on R13-222BF: 3P SPST (illuminated) off-(on) R13-222C: 3P SPDT on-on	16A 125V AC 10A 250V AC	.250" SQ SO

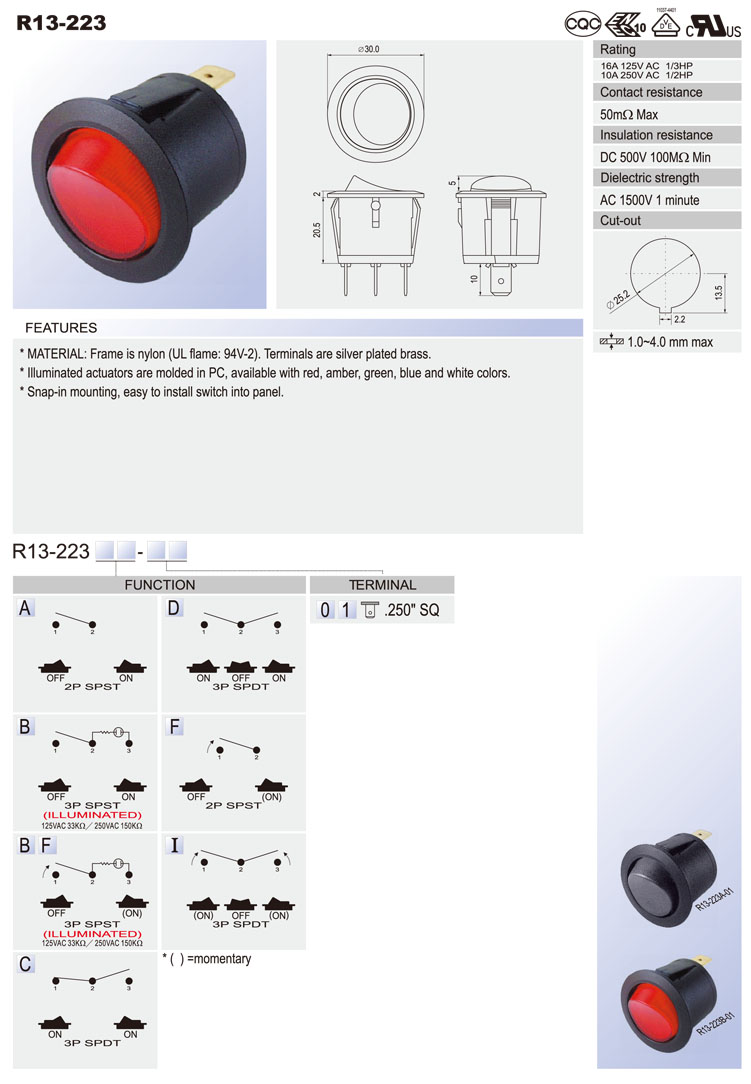

R13-223	R13-223A: 2P SPST off-on R13-223B: 3P SPST (illuminated) off-on R13-223BF: 3P SPST (illuminated) off-(on) R13-223C: 3P SPDT on-on R13-223D: 3P SPDT on-off-on R13-223F: 2P SPST off-(on) R13-223I: 3P SPDT (on)-off-(on)	16A 125V AC 1/3HP 10A 250V AC 1/2HP	.250" SQ SO

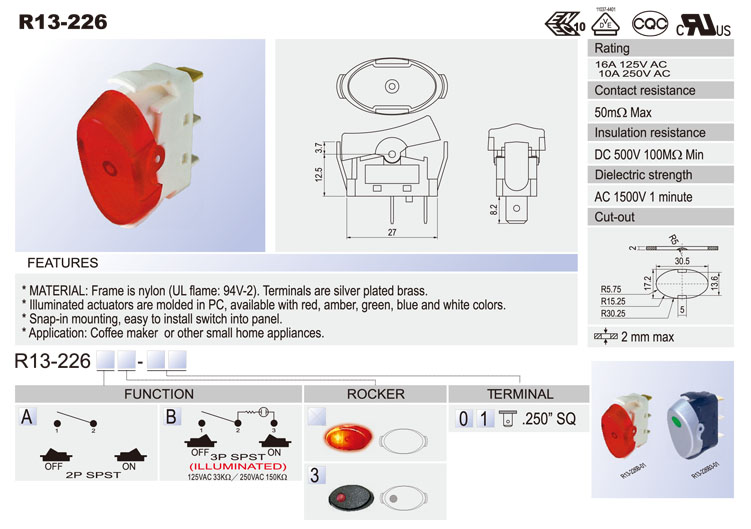

R13-226	R13-226A: 2P SPST off-on R13-226B: 3P SPST (illuminated) off-on	16A 125V AC 10A 250V AC	.250" SQ

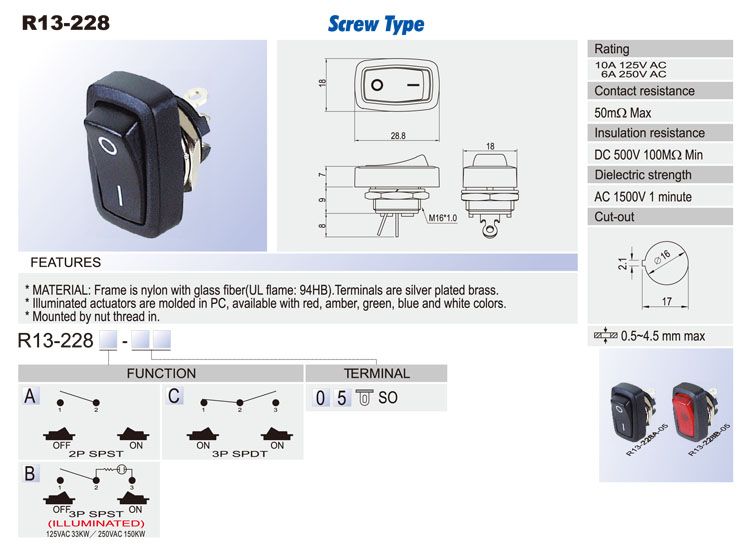

R13-228	R13-228A: 2P SPST off-on R13-228B: 3P SPST (illuminated) off-on R13-228C: 3P SPDT on-on	10A 125V AC 6A 250V AC	SO

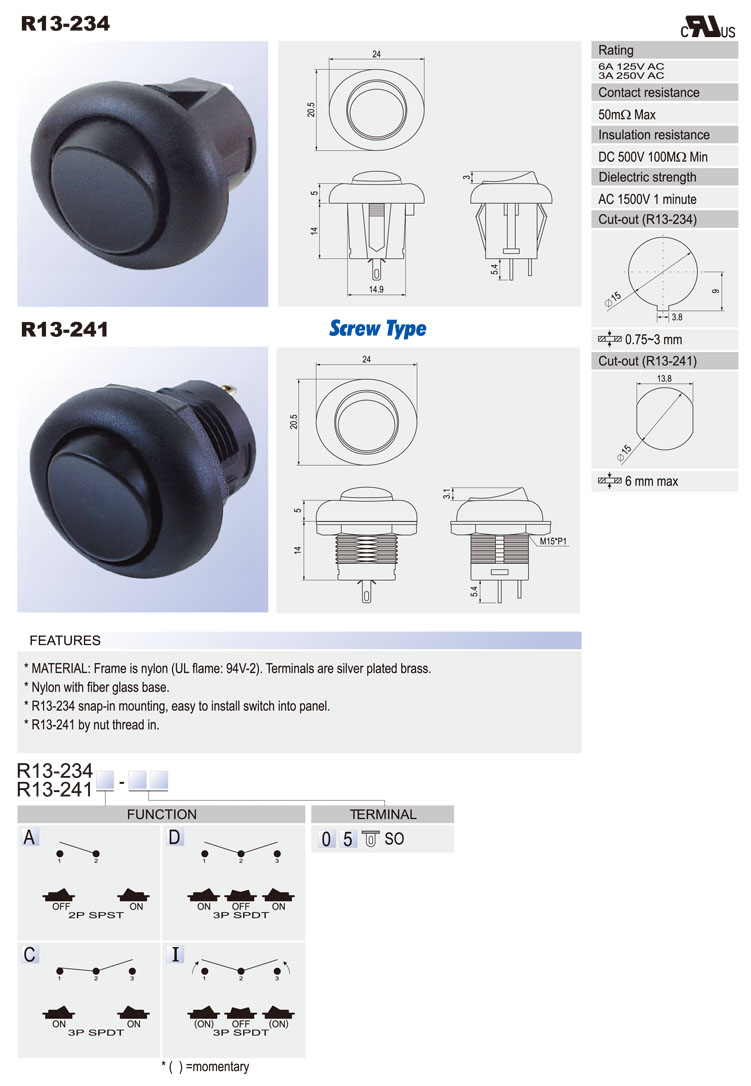

R13-234	R13-234A: 2P SPST off-on R13-234C: 3P SPDT on-on R13-234D: 3P SPDT on-off-on R13-234I: 3P SPDT (on)-off-(on)	6A 125V AC 3A 250V AC	SO

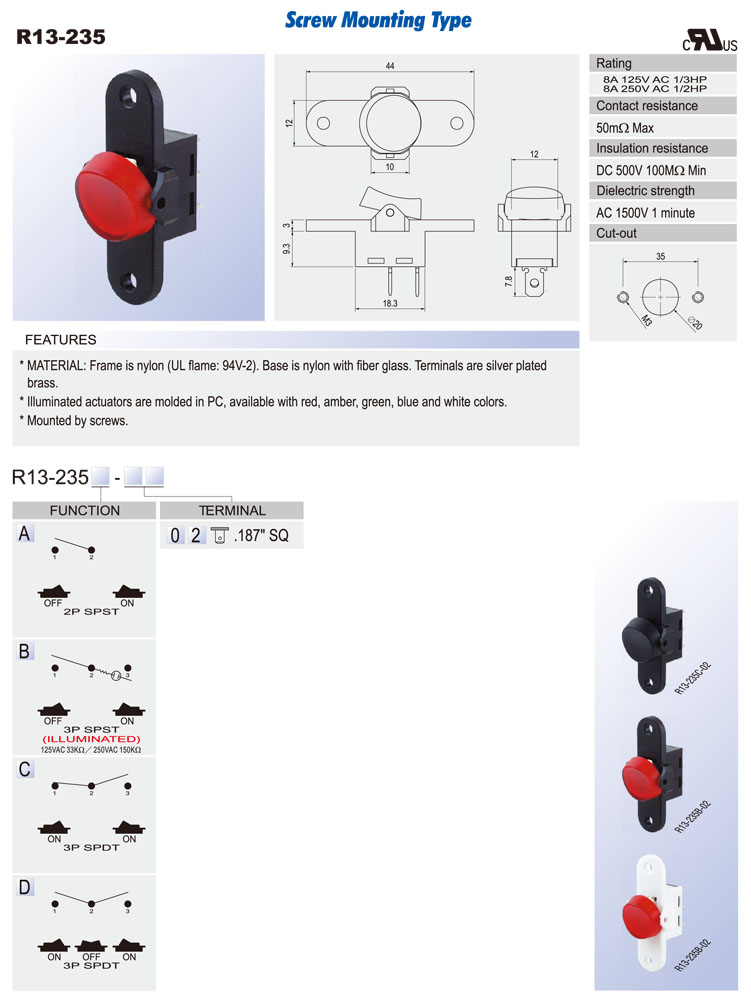

R13-235	R13-235A: 2P SPST off-on R13-235B: 3P SPST (illuminated) off-on R13-235C: 3P SPDT on-on R13-235D: 3P SPDT on-off-on	8A 125V AC 1/3HP 8A 250V AC 1/2HP	.187" SQ

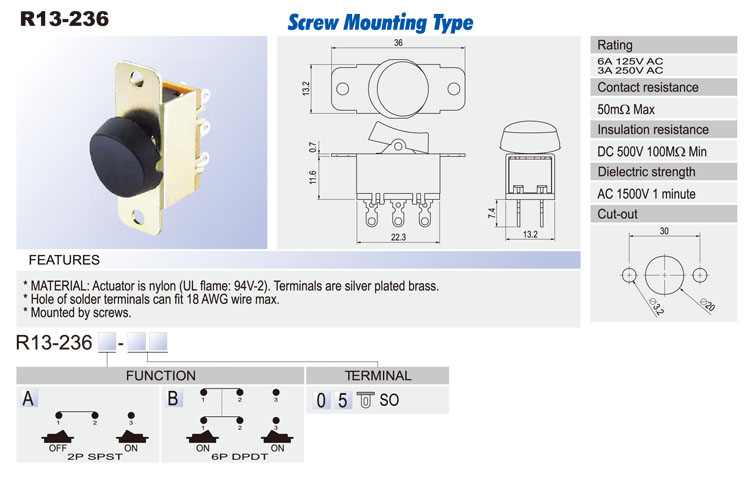

R13-236	R13-236A: 2P SPST off-on R13-236B: 6P DPDT on-on	6A 125V AC 3A 250V AC	SO
R13-238	R13-238A: 2P SPST off-on R13-238C: 3P SPDT on-on R13-238D: 3P SPDT on-off-on R13-238B: 3P SPST (neon) off-on R13-238B2: 3P SPST (LED) off-on (w/o lens) R13-238BF: 3P SPST (neon) off-(on) R13-238B2F: 3P SPST (LED) off-(on) (w/o lens) R13-238F: 2P SPST off-(on) R13-238I: 3P SPDT (on)-off-(on) R13-238A8: 2P SPST off-on (waterproof) R13-238B8: 3P SPST (neon) off-on (waterproof) R13-238B8F: 3P SPST (neon) off-(on) (waterproof) R13-238C8: 3P SPDT on-on (waterproof) R13-238D8: 3P SPDT on-off-on (waterproof) R13-238F8: 2P SPST off-(on) (waterproof) R13-238I8: 3P SPDT (on)-off-(on) (waterproof)	20A 125V AC 1/3HP 16A 250V AC 1/2HP 10(4) 250V - T85	.250" SQ SO

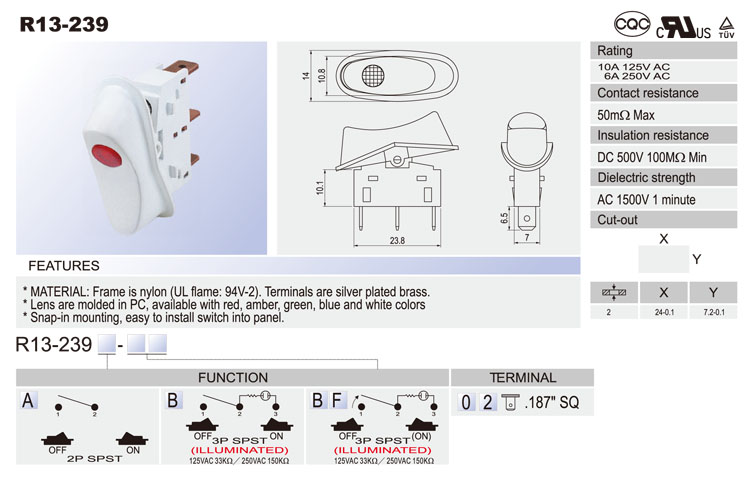

R13-239	R13-239A: 2P SPST off-on R13-239B: 3P SPST (illuminated) off-on R13-239BF: 3P SPST (illuminated) off-(on)	10A 125V AC 6A 250V AC	.187" SQ
R13-240	R13-240A: 4P DPST off-on R13-240B: 4P DPST (illuminated) off-on R13-240C: 6P DPDT on-on R13-240D: 6P DPDT on-off-on R13-240I: 6P DPDT (on)-off-(on)	16A 125V AC 1/3HP 10A 250V AC 1/2HP	.250" SQ
R13-241	R13-241A: 2P SPST off-on R13-241C: 3P SPDT on-on R13-241D: 3P SPDT on-off-on R13-241I: 3P SPDT (on)-off-(on)	6A 125V AC 3A 250V AC	SO
R13-243	R13-243A: 2P SPST off-on R13-243E: 2P SPST (off)-on R13-243F: 2P SPST off-(on)	8A 125V AC 4A 250V AC	.187" SQ
R13-244	R13-244B: 4P DPST (neon) off-on R13-244CB: 6P DPDT (neon) on-on R13-244DB: 6P DPDT (neon) on-off-on R13-244A: 4P DPST off-on R13-244C: 6P DPDT on-on R13-244D: 6P DPDT on-off-on R13-244G: 6P DPDT (on)-on R13-244H: 6P DPDT (on)-off-on R13-244I: 6P DPDT (on)-off-(on) R13-244A8: 4P DPST off-on (waterproof) R13-244B8: 4P DPST (neon) off-on (waterproof) R13-244C8: 6P DPDT on-on (waterproof) R13-244CB8: 6P DPDT (neon) on-on (waterproof) R13-244D8: 6P DPDT on-off-on (waterproof) R13-244DB8: 6P DPDT (neon) on-off-on (waterproof)	16A 125V AC / 10A 250V AC 10(4)A 125/250V AC	.187" SQ
R13-245	R13-245A: 4P DPST off-on R13-245B: 4P DPST (illuminated) off-on R13-245C: 6P DPDT on-on R13-245D: 6P DPDT on-off-on	8A 125V AC 1/3HP 8A 250V AC 1/2HP	.187" SQ
R13-257	R13-257A: 2P SPST off-on R13-257B: 3P SPST (neon) off-on R13-257L: 3P SPST (LED) off-on	16A 125V / 10A 250V AC 10A 125V / 6A 250V AC	.250" SQ
R13-258	R13-258A: 2P SPST off-on R13-258B: 3P SPST (illuminated) off-on R13-258BT: 3P SPST (illuminated) off-on R13-258C: 3P SPDT on-on R13-258D: 3P SPDT on-off-on R13-258E: 2P SPST (off)-on R13-258F: 2P SPST off-(on) R13-258G: 3P SPDT (on)-on R13-258H: 3P SPDT (on)-off-on R13-258I: 3P SPDT (on)-off-(on)	20A 125V AC 1/3HP 10A 250V AC 3/4HP (A,B,C,D) 20A 125V AC 3/4HP 10A 250V AC 3/4HP (E,F,G,H,I)	.250" SQ
R13-260	R13-260A: 2P SPST off-on R13-260B: 6P DPDT on-on R13-260C: 3P SPDT on-on R13-260D: 3P SPDT on-off-on R13-260E: 6P DPDT on-off-on R13-260F: 4P DPST on-off R13-260G: 3P SPDT (on)-off-(on) R13-260H: 3P SPDT on-off-(on) R13-260I: 3P SPDT on-(on) R13-260K: 6P DPDT (on)-off-(on) R13-260M: 6P DPDT on-off-(on) R13-260N: 2P SPST (on)-off R13-260P: 6P DPDT on-(on) R13-260Q: 4P DPST on-(off) R13-260R: 2P SPST on-(off) R13-260S: 4P DPST (on)-off	20A 125V AC / 10A 250V AC 16A 125V AC 3/4HP 10A 277V AC 3/4HP	.250" SQ SAE SQ SO SG 6-32UMC
R13-261	R13-261A: 4P DPST on-off	16A 125V AC 1/2HP 10A 250V AC 1/2HP	.187" SQ
R13-263	R13-263A: 2P SPST off-on R13-263B: 6P DPDT on-on R13-263C: 3P SPDT on-on R13-263D: 3P SPDT on-off-on R13-263E: 6P DPDT on-off-on R13-263F: 4P DPST on-off R13-263G: 3P SPDT (on)-off-(on) R13-263H: 3P SPDT on-off-(on) R13-263I: 3P SPDT on-(on) R13-263K: 6P DPDT (on)-off-(on) R13-263M: 6P DPDT on-off-(on) R13-263N: 2P SPST (on)-off R13-263P: 6P DPDT on-(on) R13-263Q: 4P DPST on-(off) R13-263R: 2P SPST on-(off) R13-263S: 4P DPST (on)-off	16A 125V AC 10A 277V AC 3/4HP 125V-277V	.250" SQ SAE SQ SO SC 6-32UNC
R13-268	R13-268A: 4P DPST off-on R13-268B: 4P DPST (neon) off-on R13-268C: 6P DPDT on-on R13-268CB: 6P DPDT (neon) on-on R13-268D: 6P DPDT on-off-on R13-268G: 6P DPDT (on)-on R13-268H: 6P DPDT (on)-off-on R13-268I: 6P DPDT (on)-off-(on)	16A 125V AC 10A 250V AC	.187" SQ

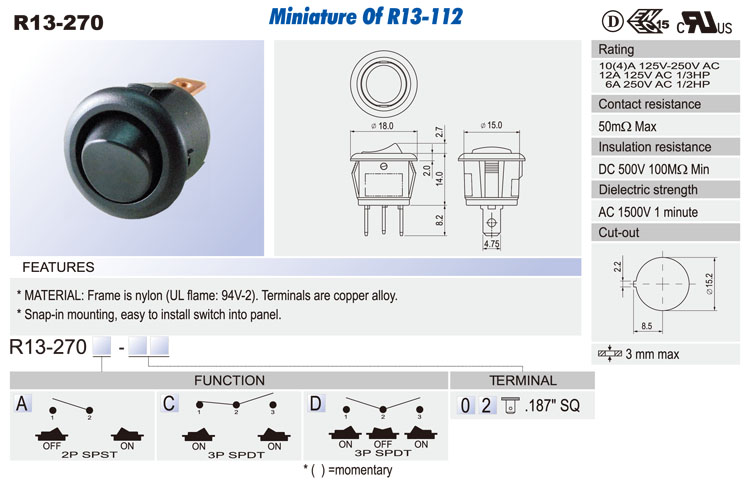

R13-270	R13-270A: 2P SPST off-on R13-270C: 3P SPDT on-on R13-270D: 3P SPDT on-off-on	10(4)A 125V-250V AC 12A 125V AC 1/3HP 6A 250V AC 1/2HP	.187" SQ
